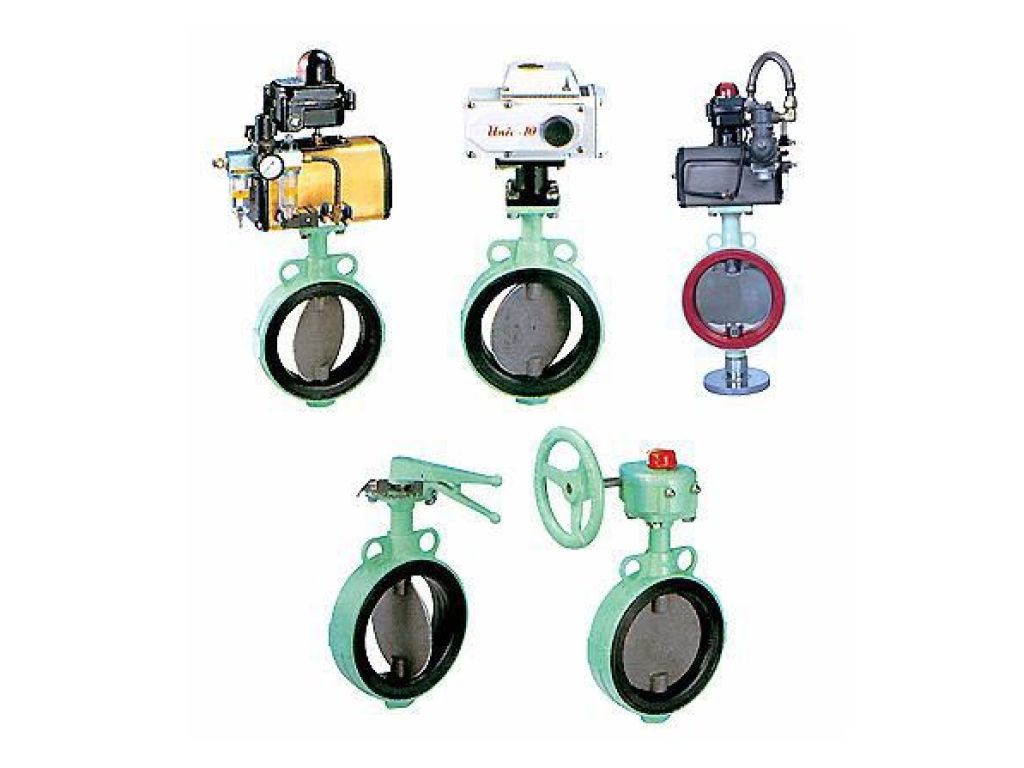

Van bướm Daejung hợp kim nhôm

Thông tin sản phẩm Van bướm Daejung hợp kim nhôm

Chúng tôi cung cấp van bướm Daejung hợp kim nhôm được nhập khẩu từ Hàn Quốc. BUTTERFLY VALVES is a new-level, very epoch-making one, largely improved interchange ability on the basis of originality and techology under the quality management system of ISO/KSA.

1. BODY: It is a ALUMINUM DIECASTING product, realized sharp light weight and very widely used due to diversification of type for applying to FLANGE.
2. SEAT: To prevent separation and transformation of SEAT by current speed when opening and closing Valve, closely adhesive face of SEAT to BODY was maximum widened and stability was also improved.
3. DISC: As a three-dimensional 360 spherical DISC, Ii is stably worked on friction face of SEAT when operation and its life wwa also largely improved. It is a compact form, minimized fluid resistance.

Applicable Field

1. Chemical Factory
2. Filtration
3. Dyeing Factory
4. Paper Mill
5. Cement Factory
6. Atomic Power Plant
7. Chemical Factory
8. Iron Foundry
9. Tire Factory
10. Food Factory

Features

As it is made of Aluminum diecasting, it has clean appearance and strong durability. It is also planned and designed for being widely used for KS, JIS, DIN, etc.

Special Effect

Small and Light : compared to same nominal sized valve(globe, gate), it has light weight, simple structure, and short time for opening and shutting.
Low Loss of Input : it was composed of precisely processed seat and disc by minimizing fluid's resistance.
Easy Maintenance and Repair : it needs narrow space for its set-up and is easy to set up regardless of horizontal and vertical piping and to maintain and repair it.

Standard Specification

• Body: Aluminum Alloy Diecasting
• Disc: 304 Stainless Steel
• Stem: 304 Stainless Steel
• Seatring: EPDM, NBR, SILICON, VITON
• Size: 50mm-350mm
• Applicable Flange: (KS, JIS 10K) (ANSI Class 150) (DIN 10BAR)
