Van bi KTM chính hãng

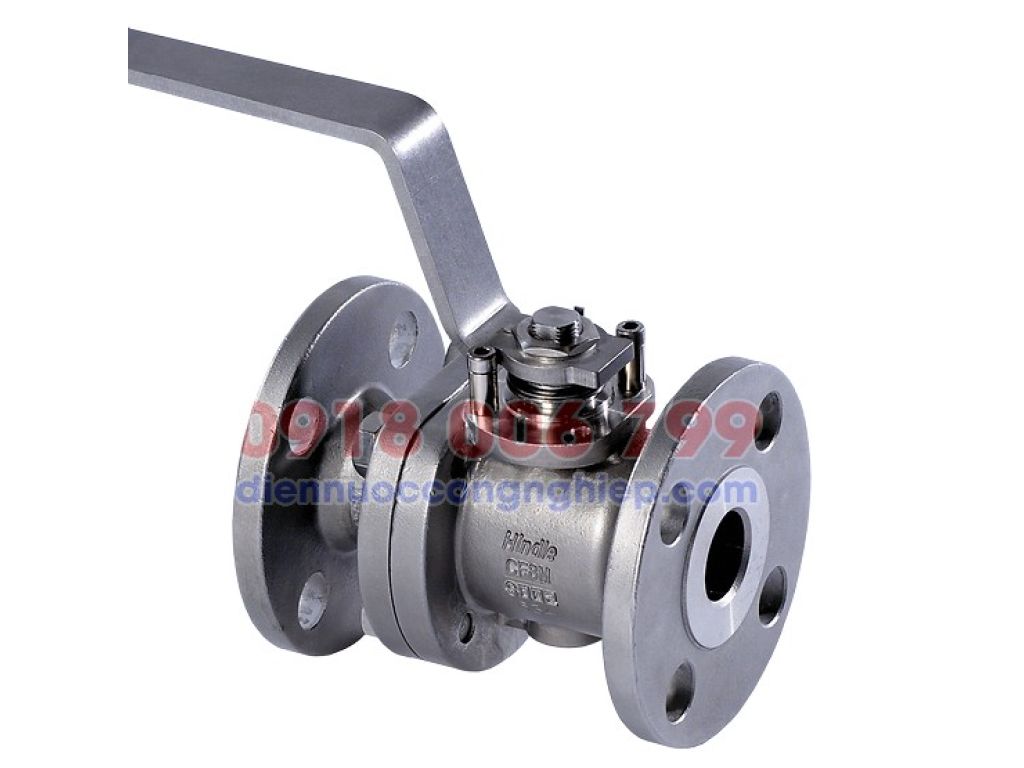

Van bi KTM Hindle Model US300 UltraSeal

Specifications

• Certifications Lloyd's Register, Fire Safe, CE, American Bureau of Shipping Shipboard, ABS, Fugitive Emission, NACE, PED, Natural Gas Certified
• End Connection Flanged
• Application Brewing, Boilers, Boiler, Blower, Bioreactor, Biomass Boiler and Power Boiler, Facilities & Process Utilities, Bulk Storage, FPSO, Fuel Gas, Fuel Management Systems, Fueling, Gas Gathering and Compression, General Service, Geothermal, Burner Manageme
• Body Design Long Pattern, Side Entry
• Material Stainless Steel, Stainless, Duplex, Carbon Steel, Aluminum Bronze, 316 Stainless Steel, Alloy, Super Duplex, Inconel, Hastelloy, Monel
• Operating Temperature -330 to 842°F (-200 to 450°C)
• Pressure Class ASME
• Process Connection Type 150RF, 300RF, CL150RF, CL300RF, Flanged
• Seat/Seal Type Soft, Ball, Cryogenic, High performance, Soft Seal
• Shutoff Class Class VI (FCI 70-2), Zero Leakage, API 598
• Standards ASME B16.34, API 608
• Valve Size Standard NPS, DN
• Valve Type Ball, Ball Valve, Floating Ball Valve
• Media Water Glycol, Water, Vacuum, Steam, Specialty Gases, Other, NH3 (Anhydrous Ammonia), NH3, Oxygen, Natural Gas, Aggressive Liquids/Gases, Air, Air, Inert Gas, Ammonia, CNG, Cryogenic, Fuel Oil, Hot Water, Light Oil, Liquid, Liquid Propane, Liquid Propane
• Stem Adjustable packing, Live loaded

Features

• Two piece full bore design, flanged construction in carbon steel, stainless steel and special alloys.
• Designed in accordance with ASME B16.34, BS EN ISO 17292 & ISO 14313/API 6D.
• Floating ball design for bi-directional shut-off.
• Flexing soft seat design for superior shut-off across a range of pressures with minimum operating torque.
• Low temperature and cryogenic designs for service down to -196°C available on request.
• Spring energized metal and carbon seat designs permitting tight shut-off and positive cavity pressure relief.
• Fused hard nickel alloy, chromium carbide or tungsten carbide coated seat and ball designs for abrasive and high temperature service.
• Hard carbon seat design for medium temperature applications.
• High integrity shaft seal minimizing the potential for atmospheric leakage.
• Fugitive emission performance to BS EN ISO 15848-2 class A.
• Corrosion resistant trim. Standard valves incorporate balls and shafts of stainless steel for long service life.
• Fire test certified. All sizes and pressure ratings are covered by approved certification.

Van bi KTM Model NB/MB

Specifications

• Certifications CE, CRN, Fugitive Emission, SIL capable, PED
• End Connection Flanged
• Application Asphalt Blending, Batch , Beverages, Biofuels, Filling, Fluid Control , Geothermal, Industrial Service, Product Transfer, Product Blending, Mixing/Stirring, Lube Blending
• Body Design Side Entry, Long Pattern
• Material Carbon Steel, 316 Stainless Steel
• Operating Temperature High Temperature
• Pressure Class ASME
• Process Connection Type CL150RF, 150RF, 300RF, CL300RF, Flanged
• Seat/Seal Type Soft Seal, Ball
• Shutoff Class API 598, Zero Leakage
• Standards ASME B16.34, API 608
• Valve Size NPS 2 / DN 50, NPS 1-1/2 / DN 40, NPS 10 / DN 250, NPS 1 / DN 25, NPS 3 / DN 80, NPS 4 / DN 100, NPS 8 / DN 200, NPS 6 / DN 150
• Valve Size Standard NPS, DN
• Valve Type Ball, Floating Ball Valve, Three-Way Valve
• Media Aggressive Liquids/Gases, Air, Ammonia, CNG, Fuel Oil, Hot Water, Light Oil, Liquid, Liquid Propane, Liquid Propane Gas, Liquids, LPG, Mineral Oil, Natural Gas, NH3, NH3 (Anhydrous Ammonia), Specialty Gases

Features

• Positive alignment of body.
• Blow-out proof stem for safety.
• Sphericity tolerance of the ball is unsurpassed.
• Multiple layers of adjustable PTFE chevron packing rings for standard model enable excellent fugitive emission control.
• Positive position indication.
• Locking device capable.
• Heavy duty body construction.
• Machined ISO 5211 top mounting flange.
• Live load springs keep constant force on stem-seal packing, ensuring seal integrity and extended valve life.
• Dual shaft bearings for high cycle life operation.
• Higher Cv values and less cost for diverting which can be normally done with multiple installation of valves.2 seats feature OM2 compatible, co-polymer E-seat as standard. Machined firesafe lip for metal touch to ball in case of fire. It also eliminates

Van bi KTM R711/R713

Features

• Designed to ASME B16.34, API 608 and ISO 17292. Optional testing to API 6D / ISO 14313
• Single piece end entry body design complies with ASME B16.34
• ISO 5211 top mounting flange
• Face to Face to ASME B16.10
• Fire Safe tested and certified to API 607 by Lloyd’s Register Asia
• Flange connection to ASME B 16.5 as standard
• One piece body offers total pipe integrity minimizing the number of potential leak paths
• Carbon steel or stainless steel body as standard
• Precision 316 stainless steel ball as standard
• Blowout proof shouldered stem
• Anti-static to API 608
• A secondary metal “fire safe” seat

Van bi KTM Series EB538 / EB535

Specifications

• Certifications PED, NACE, Fire Safe, CRN, CE
• End Connection Threaded, Socket Weld, Butt Weld
• Application Storage & Distribution, Separation, Gas Gathering and Compression, City Gates & District Stations, Fuel Gas, City Gate/Distribution Station, Burner Management Systems
• Body Design Side Entry
• Material 316 Stainless Steel, Carbon Steel, Stainless Steel, Super Duplex, Duplex, Inconel
• Pressure Class ASME
• Process Connection Type SWE, Weld end, NPT
• Seat/Seal Type Ball, Soft Seal
• Shutoff Class API 598, Zero Leakage
• Standards API 608, ASME B16.34
• Valve Size NPS 1 / DN 25, NPS 1/2 / DN 15, NPS 1/4 / DN 8, NPS 3/4 / DN 20, NPS 1-1/2 / DN 40
• Valve Size Standard DN, NPS
• Valve Type Ball Valve, Floating Ball Valve
• Media CNG, Aggressive Liquids/Gases, Natural Gas, LPG, Liquids

Features

• Designed to ASME B16.34.
• Two piece locked body design eliminates body bolting.
• Fire Safe tested and certified to API 607 by Lloyd’s Register Asia.
• Screwed connection to ASME B1.20.1 (NPT) and BS 21 (BSPT).
• Socket welded dimensions to ASME B16.34 / ASME B16.11.
• Extended welded ends are available as an option.
• Socket weld valve face-to-face dimensions allows inline welding.
• Forged carbon steel or stainless steel body.
• Integral mounting flange for ease of actuation.
• Integral padlocking wrench kit option.
• Precision stainless steel ball and stem is standard in all trims.
• Vented ball equalizes body cavity pressure in open position and prevents seat damage.

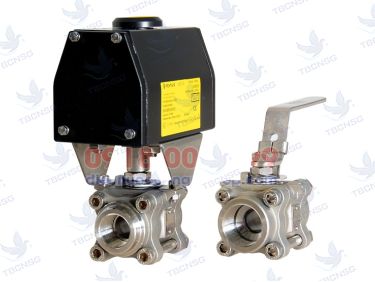

Van bi KTM Series EB598

Specifications

• Certifications Fire Safe, PED, Regional, CE, CRN
• End Connection Threaded, Socket Weld, Butt Weld
• Application Facilities & Process Utilities, FPSO, Custody Transfer Systems, Custody Transfer, City Gates & District Stations, City Gate/Distribution Station, Gas Gathering and Compression, Separation, Storage & Distribution, Bulk Storage, Boilers, Boiler
• Body Design Side Entry
• Material 316L Stainless Steel, 316 Stainless Steel, Carbon Steel
• Pressure Class ASME
• Process Connection Type BWE, NPT, SWE, BSP, Threaded
• Seat/Seal Type Soft Seal, Ball
• Shutoff Class API 598, Zero Leakage
• Standards API 608, ASME B16.34
• Style Emergency Shutoff Valves
• Valve Size NPS 1 / DN 25, NPS 1/2 / DN 15, NPS 1-1/2 / DN 40, NPS 1-1/4 / DN 32, NPS 3/4 / DN 20, NPS 1/4 / DN 8, NPS 3/8 / DN 10
• Valve Size Standard DN, NPS
• Valve Type Floating Ball Valve, Ball Valve

Features

• Full bore valves provide an unrestricted flow path for higher flow rates.
• 100% of valves are pressure tested.
• Certificate of Compliance to EN 10204 / ISO 10474 Type 3.1 (DIN 50 049) are supplied as standard.
• Winged body design allows the mounting of actuators without having to remove the body bolts and maintain seal integrity.
• Three piece body allows swing out center section for fast and easy maintenance.
• Integral padlocking as standard on manual valves.
• Blow-out proof stem.
• Vented ball equalizes body cavity pressure in open position and prevents seat damage.
• Vented seats equalizes pressure over upstream seat when used in high differential pressure applications and thereby reduces operating torque.
• Fully machined carbon PTFE seats are standard ensuring bubble-tight shut-off.
• A choice of seating material options are available.
• Carbon steel or stainless steel body and end connections available.

Van bi điều khiển HiPerformance KTM DualV

Specifications

• Critical Service Corrosive, Dirty Service, Erosive, Flashing, General Service
• Flow Characteristics Equal percentage
• Material 316 Stainless Steel
• Operating Temperature High Temperature
• Pressure Class ASME
• Shutoff Class Class V (FCI 70-2)
• Valve Size NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200, NPS 2 / DN 50, NPS 1 / DN 25, NPS 1-1/2 / DN 40
• Valve Size Standard DN, NPS
• Valve Type Segmented Ball Valve, Ball
• Certifications CE, Fugitive Emission, PED, Regional, Fire Safe
• End Connection Flanged, Flangeless

Features

• Unique dual-V ball features a secondary (Small) V-notch allowing extremely small, accurate flow rates
• The primary (Large) V-notch provides straight through and non-clogging flow
• Dual-V ball allows rate changes and controls fluids with a rangeability in 250:1
• Equal percent flow characteristic
• Rotary-valve design provides shearing action between the V-notch ball and the seat, promoting a smooth, non-clogging operation
• Spring loaded stellited metal seat
• ANSI / FCI 70-2 Class V
• Unibody design protect from the effect of piping stress
• Minimum body cavity reduces build-up
• Fugitive emissions control for flammable and non-flammable applications
• Available in flangeless or flanged construction
• Multiple, adjustable ring packing allows easy adjustment without valve disassembly or actuator removal

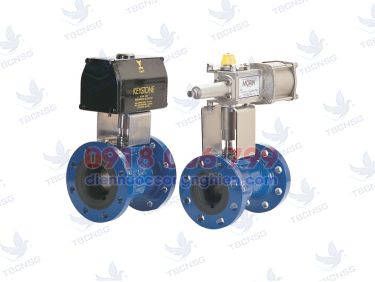

Van bi điều khiển VPM Model VPort

Specifications

• Critical Service Corrosive, General Service
• Flow Characteristics Equal percentage
• Material 316 Stainless Steel, 304 Stainless Steel, Stainless Steel
• Operating Temperature High Temperature, High Temperature (>250F)
• Pressure Class ASME
• Shutoff Class Class II (FCI 70-2), Class IV (FCI 70-2)
• Valve Size NPS 1 / DN 25, NPS 1-1/2 / DN 40, NPS 12 / DN 300, NPS 14 / DN 350, NPS 16 / DN 400, NPS 18 / DN 450, NPS 2 / DN 50, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200, NPS 20 / DN 500
• Valve Size Standard NPS, DN
• Valve Type Trunnion Ball Valve, Ball Valve, Ball, Automated Ball Valve
• Certifications PED, Lloyd's Register, CE
• End Connection Flanged

Features

• Rotary-valve design provides shearing action between the V-notch ball and the seat, promoting a smooth, non-clogging operation.
• Straight-through flow design provides high capacity for fluids.
• With a single-seat design, torque is lower than typical trunnion design valves, for ease of operation and reduced actuator cost.
• Two seat designs:
  • Laminated seat provides ASME/FCI 70-2 class IV shut-off and withstands tough operating conditions.
  • Thick (solid) seat for high-velocity and abrasive or erosive service.
• Segmented, V-notched ball features high rangeability and smooth throttling action.
• Choice of full and reduced port, providing the right flow capacity for every application at low cost.
• Machined ISO 5211 top mounting flange (VA series only).
• Heavy-duty, stainless steel shaft for high strength and rigidity.
• Multiple, adjustable ring packing allows easy adjustment without valve disassembly or actuator removal.
• Shaft bearings assure a durability, smooth and easy valve operation.
• Positive alignment of split body.
• The spline connection minimizes the backlash of shaft and disk. It results excellent control performance.
