Van bi Ayvaz lắp mặt bích

  • Giá bán: Liên hệ nhận báo giá
  • Danh mục: Van bi
  • Thương hiệu: Ayvaz
  • Bảo hành: Có
  • Xuất xứ: Chính hãng
  • Hỗ trợ giao hàng: Có

    Thông tin sản phẩm

    Van bi Ayvaz mặt bích một loại van sử dụng đĩa van đóng mở có dạng cầu hình viên bi. Đĩa van dạng hình cầu có đục lỗ và xoay vòng để kiểm soát dòng chảy đi qua van. Van bi này kết nối với đường ống bởi 2 mặt bích 2 đầu. Các van bi mặt bích thường có kích cỡ lớn từ DN40 đến DN500

    Quan sát bên ngoài ta có thể nhận thấy ball valve đóng hoàn toàn khi tay gạt điều khiển vuông góc 90 độ với dòng chảy. Van mở hoàn toàn khi tay gạt cùng chiều với dòng chảy.

    Van bi mặt bích Ayvaz là sản phẩm chất lượng cao nhập khẩu từ Thổ Nhĩ Kỳ. Van bi mặt bích Ayvaz tay gạt được sử dụng rộng rãi cho các ngành, cấp nước, bột giấy, công nghiệp thực phẩm, gas, hệ thống điều hòa không khí, công nghiệp thực phẩm, hóa chất, công nghiệp đóng tàu, nhà máy giấy.

    Van bi Ayvaz mặt bích cũng như các loại van bi khác đều có cấu tạo cơ bản gồm phần thân, phần bi (bóng chặn), trục, và tay gạt. Phần điều chỉnh dòng chảy có cấu tạo tròn và có lỗ cho vật chất đi qua. Bi được giữ chặt giữa hai vòng làm kín. Tay quay được lắp ở đầu trên của cần van. Khi vặn tay quay một góc 900 thì van sẽ ở vị trí đóng hoặc vị trí mở. Do đó van bi cũng là loại đóng mở nhanh. Vì hình dạng của chúng nên van bi có độ trơn và vận hành được dễ dàng hơn. Vì thế nên giảm được lực ma sát giữa bi và các vòng làm kín khi vận hành do đó chúng không cần tới sự bôi trơn. Tay quay của van bi cũng giống như van nút nó sẽ nằm song song với dòng chảy khi van ở vị trí mở. Còn khi tay quay nằm vuông góc với đường ống thì nó ở vị trí đóng.

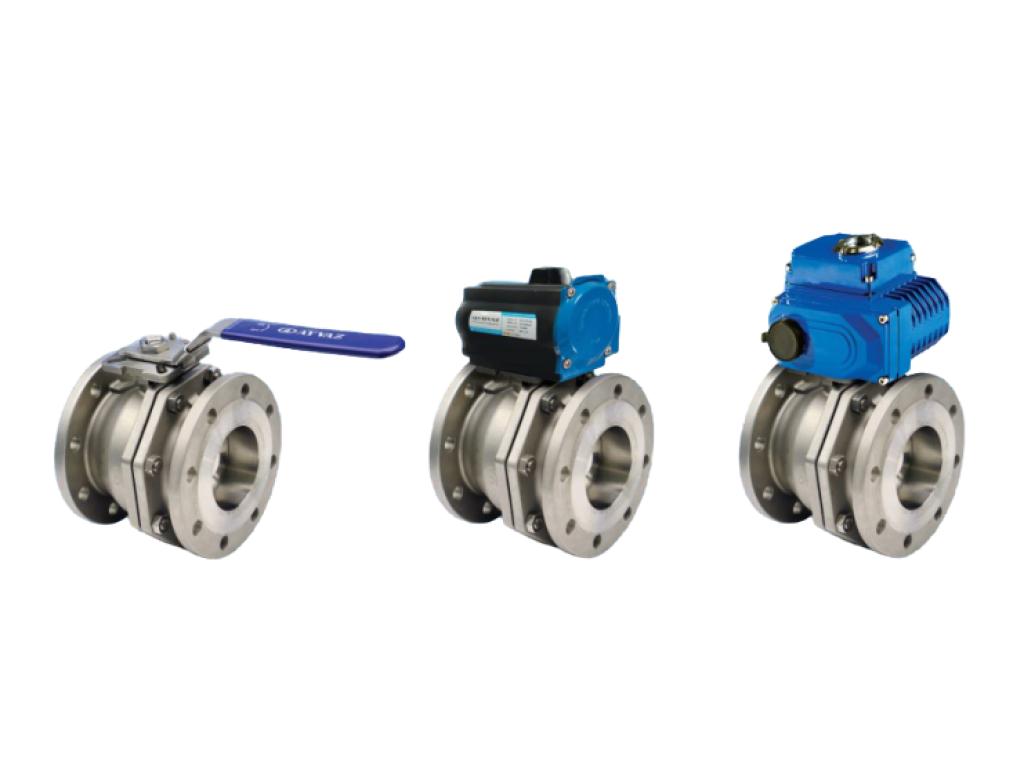

    Các loại van bi mặt bích Ayvaz chính hãng.

    product image

    Sản phẩm van bi chính hãng của Ayvaz có các loại sau:

    V-2F/FP Stainless Steel Ball Valves

    The essential element in the ball valve is a ball which has a hole in the the middle. This ball's 90º turn move it from fully opened to closed position. The ball valves are primarily used in places where it is necessary to open and close a lot or to open and close quickly.
    The advantages are low pressure losses, easy opening and closing, good sealing, light weight and low space occupancy. Sealing; It is made up of two stages as a sphere seal and a shaft seal.

    Materials: Body: AISI316 / AISI304 Stainless Steel Ball: AISI316 / AISI304 Stainless Steel
    Connection: Flanged
    Nominal Dia.: DN15 (1/2”) - DN200 (8”)
    Pressure Class:
    PN40 (1/2" - 2")
    PN16 (2 1/2" - 4")
    PN16 (5" - 8")
    Temperature Range:
    Based on material from -25°C 180°C
    Applications:
    - Heating-cooling lines
    - Food facilities
    - Chemical industry
    - Shipbuilding
    - Paper mills

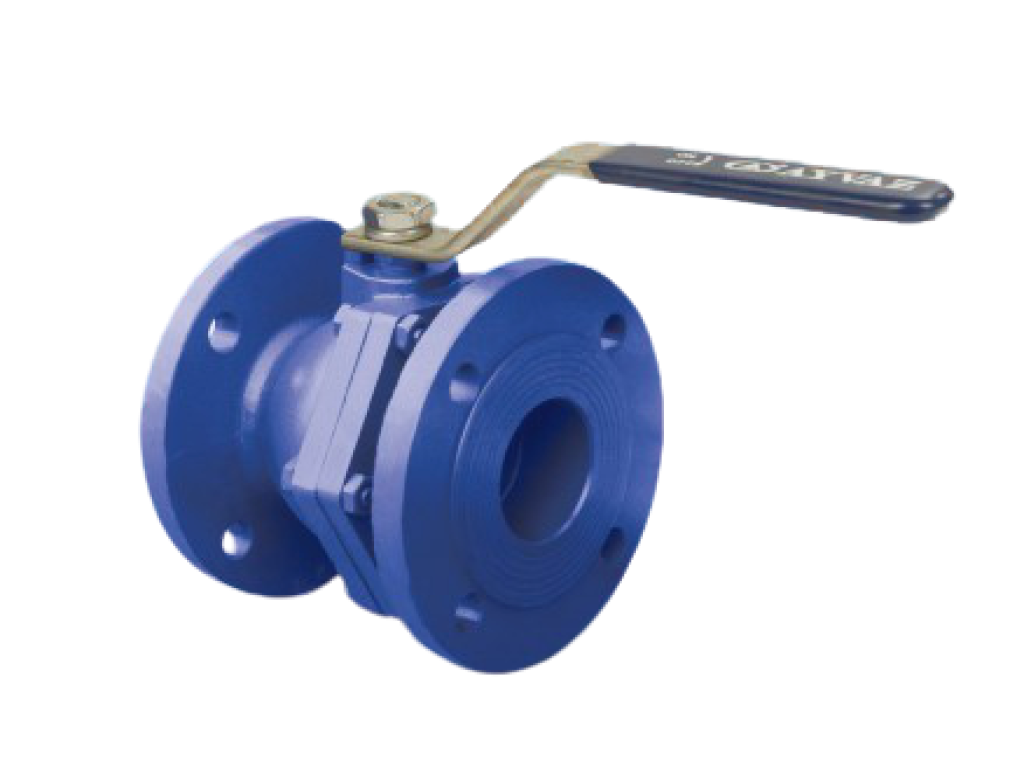

    TGV-10 Full Bore Ball Valve

    The main part of the ball valve is ball which has a hole in middle. When that ball rotate 90 degree it close or open. They are useful for applications which have to be rapid.
    Its upper Flange is suitable for assembling actuator and it is also produced according to ISO5211 standards.

    Advantages;
    Minimal loss of pressure
    Easy to opening and closing
    Good leak tightness
    Compact design

    TGV-10 occurs from 3 parts. Because of their configuration they provide minimal loss of pressure
    Actuators can assembly easily.

    Material Structure:
    Body: GG25 cast iron
    Ball: AISI 316 Stainless steel

    Connection:
    Flanged

    Nominal Diameter:
    DN15 (1/2”) - DN200 (8”)

    Working Pressure:
    Up to 16 bars

    Working Temperature:
    -10 to 120ºC

    Typical Applications:
    Heating air-conditioning systems
    Food industry Chemical industry
    Shipbuilding
    Paper mills

    TGV-20 Full Bore Ball Valve

    The main part of the ball valve is ball which has a hole in middle. When that ball rotate 90 degree it close or open. They are useful for applications which have to be rapid.
    Advantages;
    Minimal loss of pressure
    Easy to opening and closing
    Good leak tightness
    Compact design

    TGV-20 occurs from 3 parts. Because of their configuration they provide minimal loss of pressure
    Actuators can assembly easily.

    Material Structure:
    Body: GG25 cast iron
    Ball: AISI 316 stainless steel

    Connection:
    Flanged

    Nominal Diameter:
    DN40 (1 1/2”) - DN200 (8”)

    Working Pressure:
    Up to 16 bars

    Working Temperature:
    -10 to 120ºC

    Typical Applications:
    Heating air-conditioning systems
    Food industry Chemical industry
    Shipbuilding
    Paper mills

    V-3F Ball Valve

    The main part of the ball valve is ball which has a hole in middle. When that ball rotate 90 degree it close or open. They are useful for applications which have to be rapid.

    Advantages;
    Minimal loss of pressure
    Easy to opening and closing
    Good leak tightness
    Compact design
    They tested with water test under 10 bar pressure

    Material Structure
    Body stainless steel AISI316 / AISI304
    Ball stainless steel AISI316 / AISI304

    Connection:
    Flanged

    Nominal Diameter:
    DN15 (1/2”) - DN100 (4”)

    Working Pressure
    Up to 40 bars

    Working Temperature
    -10 to 210ºC

    Typical Applications
    Heating air-conditioning systems
    Food industry Chemical industry
    Shipbuilding
    Paper mills

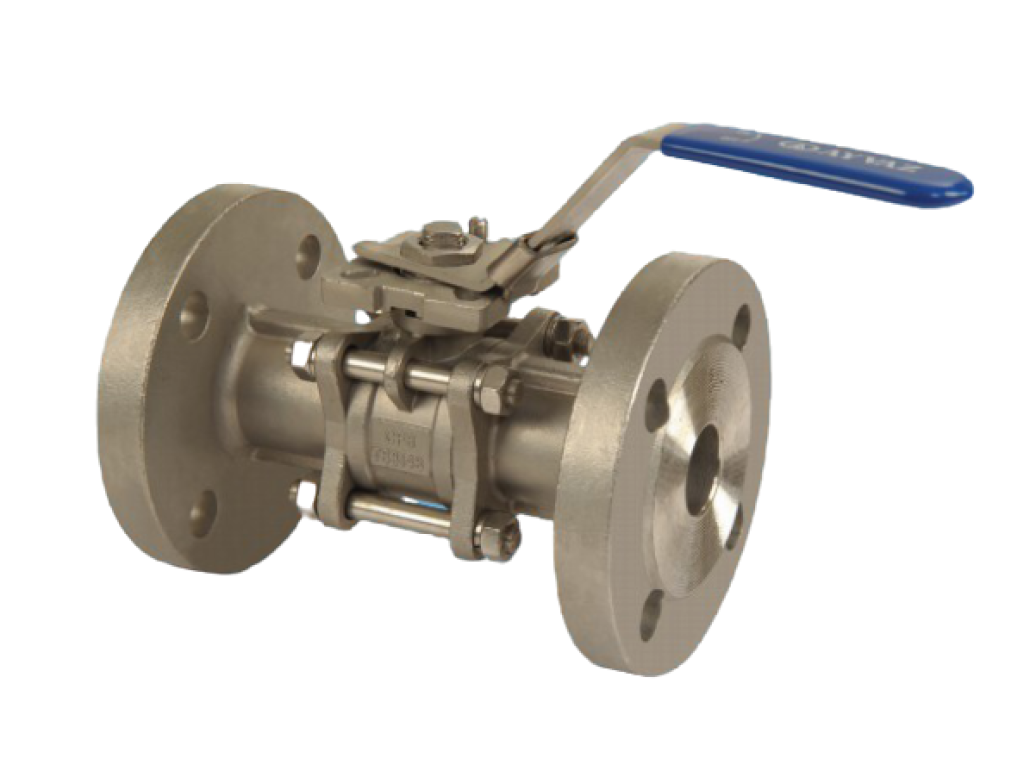

    V-3FP Ball Valve

    The main part of the ball valve is ball which has a hole in middle. When that ball rotate 90 degree it close or open. They are useful for applications which have to be rapid.

    Advantages;
    Minimal loss of pressure
    Easy to opening and closing
    Good leak tightness
    Compact design
    They tested with water test under 10 bar pressure.
    Actuators can assembly easily.

    They tested with water test under 10 bar pressure

    Material Structure:
    Body: Stainless steel AISI316 / AISI304
    Ball Stainless steel AISI316 / AISI304

    Connections:
    Flanged

    Nominal Diameter:
    DN15 (1/2”) - DN100 (4”)

    Working Pressure:
    Up to 40 bars

    Working Temperature:
    -10 to 210ºC

    Typical Applications:
    Heating air-conditioning systems
    Food industry Chemical industry
    Shipbuilding
    Paper mills

    Ayvaz TGV-25 Full Bore Valve

    Valves are important control element for flow control. Due to their fluid flow pattern, the ball valves have minimum pressure loss. The pressure loss of the same diameter pipe is equivalent to the Ayvaz TGV 25's loss of pressure.Application Areas:Hot, cold and condensate lines.Installation:Installation can be done in every position.

    • Flanged Body GGG-25
    • Stainless Steel Ball
    • Ball sealing ring and control stemring is teflon.
    • (PTFE)Outer sealing ring is silicon.
    • Stainless steel control stem with PTFE and O-ring system, internally mounted, provides extra sealing safety.
    • Flanged Connection Norm: EN1092-2 & TS-ISO 7005-2
    • Full Bore.
    • Long Life.
    • Easy to use.
