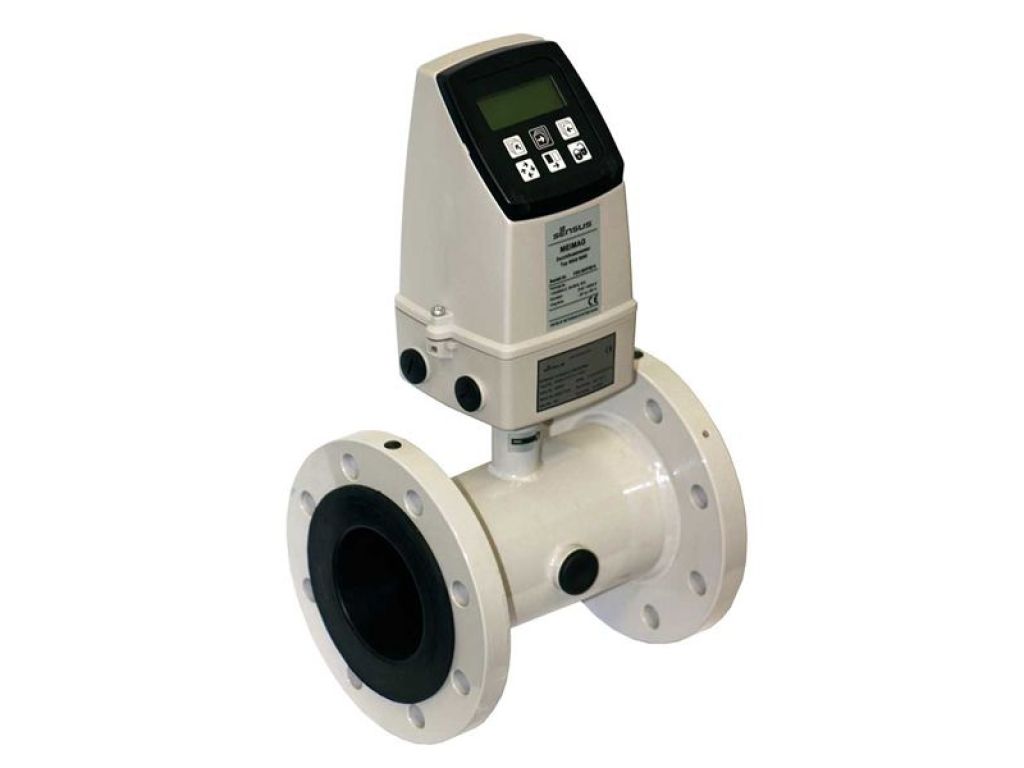

Đồng hồ nước điện tử Sensus MeiMag

    Thông tin sản phẩm

    Đồng hồ nước điện tử Sensus MeiMag là dòng đồng hồ đo lưu lượng nước điện tử.

    Meimag bao gồm hai thành phần khác nhau: Một bộ chuyển đổi trên đầu đo và cảm biến bên trong. Có hai phiên bản chuyển đổi khác nhau:

    MAG 6000CT để đo nước, trong các ứng dụng thương mại, lên đến 30 ° C. Sử dụng như là hóa đơn thanh toán hoặc tưới tiêu

    MAG 6000 để đo lượng nước, trong các ứng dụng công nghiệp, đến 70 o C để sử dụng trong xử lý nước và trộn chất lỏng

    MAG 5100W, để đo lượng nước lên đến 70 ° C và sử dụng trong các ứng dụng công nghiệp, xử lý nước và trộn chất lỏng (MAG 6000).

    Features

    product image

    Converter – MAG 6000CT

    • Approval acc. 2004/22/EG MI001 for cold water up to 30 °C Wide measuring range
    • Approved Ratio R160

    Converter – MAG 5000

    • High measuring accuracy (±0,4%±1mm/s of measured value under reference conditions)
    • Wide measuring range

    Converter – MAG 6000

    • High measuring accuracy (±0,2%±1mm/s of measured value under reference conditions)
    • Sensor – MAG 5100W
    • High measuring accuracy (±0,2%±1mm/s of measured value; together with MAG 6000)
    • Earthing electrodes integrated in the measuring tube
    • Coned measuring pipe by 1xDN for more accurate measurement of low flow rates
    • Measuring tube liner with sanitary approval
    • Measuring tube temperature resistant up to 70 °C (short time 90 °C
    • EPDM liner specifically for drinking water applications requiring special approvals
    • Built-in advanced batch control
    • Robust design

    Specifications

    • Simple commissioning by SENSORPROM
    • No calibration necessary
    • Self-diagnosis
    • Converter suitable for compact/remote mounting; separate mounting with cable length up to 3 m with MAG 6000CT and up to 100 m with MAG 6000
    • Automatic zero point adjustment
    • LCD-indicator, current output, pulse output
    • Empty pipe detection
    • Flow-direction signal
    • Batch function
    • Limit switch

    Hình ảnh sản phẩm

    product image
