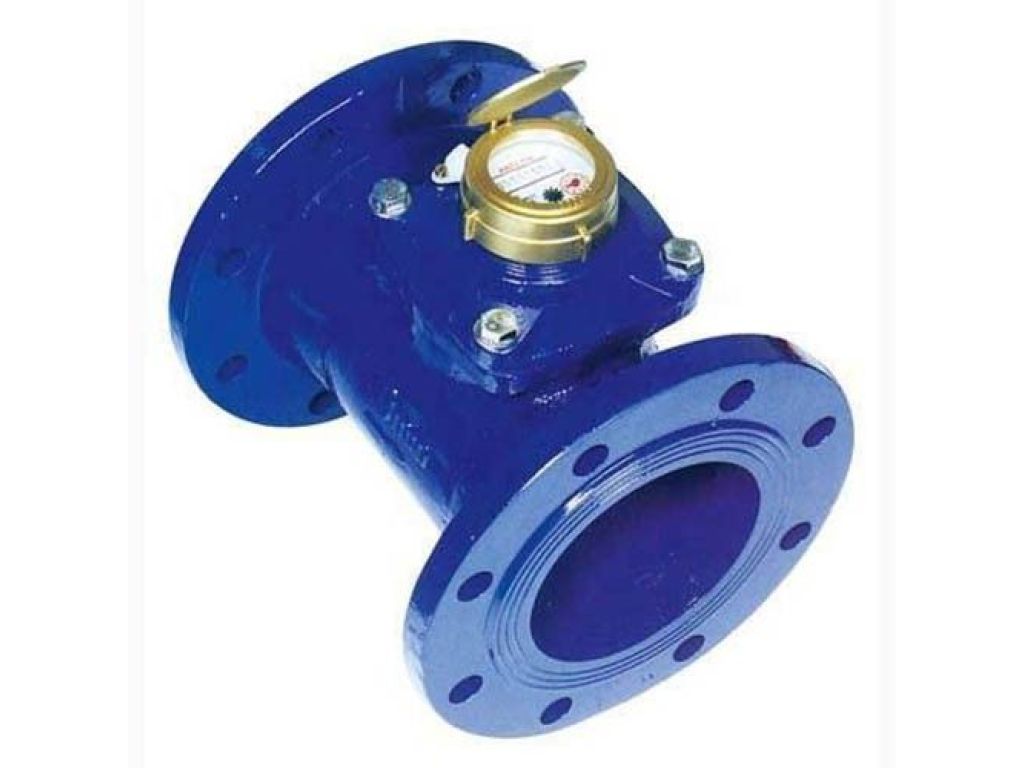

Đồng hồ nước Baylan Turkey cấp B lắp bích

Thông tin sản phẩm

Woltmann type design for irdustrial applications

Metrological class: B

IP67 protected dry type mechanism

Suitable for potable water

Low head loss Good sensitivity in initial starting

Body internally/externally e/p powder painted

Optical reading available 3 years of warranty

Pulse output and AMR reading features are optional

Special, thick glass with resistance to impacts

Almost no maintenance

Service and spare parts available for 10 years

At low flows: ±5 % (error) between minimum flow rate (Qmin) and transitional flow rate (Qt)

At high flows: ±2 % (error) between transitional flow rate (Qt) and maximum flow rate (Qmax)

Max. Working Temperature: 50°C

Max. Working Pressure: 16 bar

  • Đồng hồ Baylan DN50 lắp đường ống phi Φ60mm (2")
  • Đồng hồ Baylan DN65 lắp đường ống phi Φ73mm (2½")
  • Đồng hồ Baylan DN80 lắp đường ống phi Φ90mm (3")
  • Đồng hồ Baylan DN100 lắp đường ống phi Φ114mm (4")
  • Đồng hồ Baylan DN125 lắp đường ống phi Φ141mm (5")
  • Đồng hồ Baylan DN150 lắp đường ống phi Φ168mm (6")
  • Đồng hồ Baylan DN200 lắp đường ống phi Φ219mm (8")

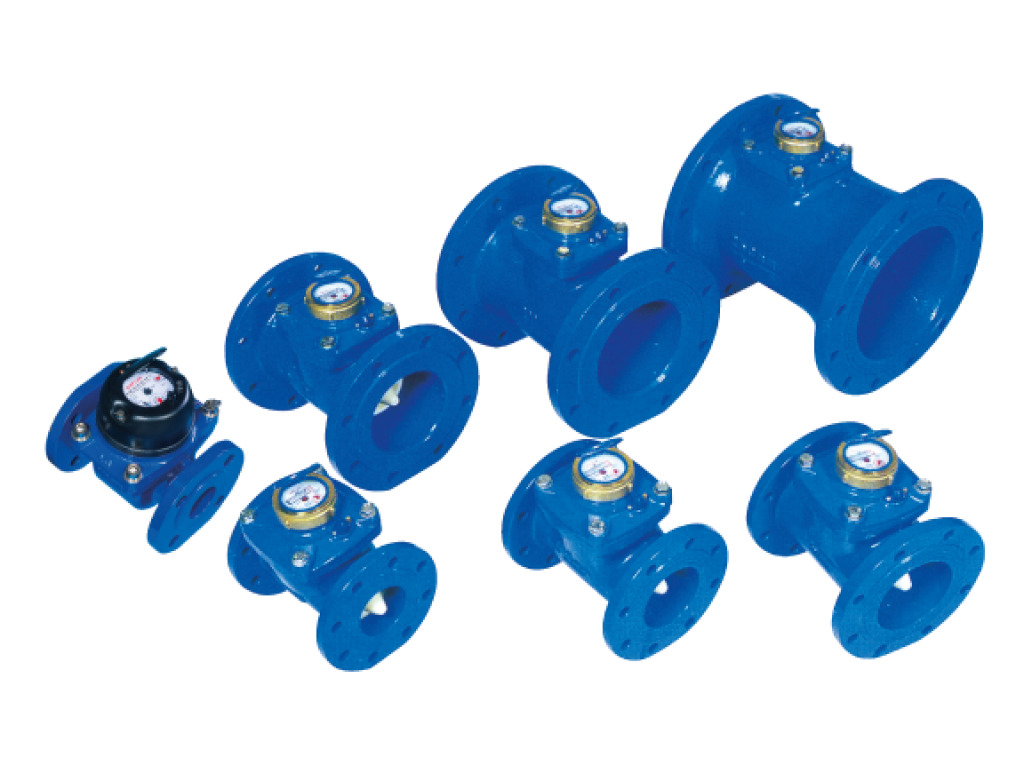

Hình ảnh sản phẩm

product image product image
