Đồng hồ nước điện tử Baylan

Thông tin sản phẩm

• MID Certified • Very good sensitivity at starting flow

• Ultrasonic working principle assures very high sensitivity even at low flow

• Reading through the center of the GPRS system, the collector of conformity (Optional)

• Via the LCD display providing access to meter data for billing and check out • Parametric 2 pulse outputs

• Meters are protected against tampering by Seal Stickers with BAYLAN

 brandname hologram, approved by Metrology Institue

• Calibration is done inside the electronic circuit digitally by software

• Parameters, which is not possible to modify externally

• Suitable for potable water • Advanced service network

• Suitable for cold water up to 50°C

• No measurement of air • Reverse flow detection

• Wide dynamic measuring range and low pressure loss

• Can be mounted all positions desired

• IP 68 protection class •Mod-Bus interfaces

• Radio Frequency automatic remote reading (Optional)

• Due to the lack of moving parts, high measurement accuracy

• Lithium battery, 10 years lifetime • 3 years of warranty

• Service and spare parts available for 10 years

At low flows : ±5 % (error) between minimum flow rate (Q1) and transitional flow rate (Q2)

At high flows : ±2 % (error) between transitional flow rate (Q2) and overload flow rate (Q4)

Max. Working Temperature : 50°C

Max. Working Pressure : 16 bar

  • DN50 lắp đường ống phi Φ60mm (2")
  • DN65 lắp đường ống phi Φ73mm (2½")
  • DN80 lắp đường ống phi Φ90mm (3")
  • DN100 lắp đường ống phi Φ114mm (4")
  • DN125 lắp đường ống phi Φ141mm (5")
  • DN150 lắp đường ống phi Φ168mm (6")
  • DN200 lắp đường ống phi Φ219mm (8")

Hình ảnh sản phẩm

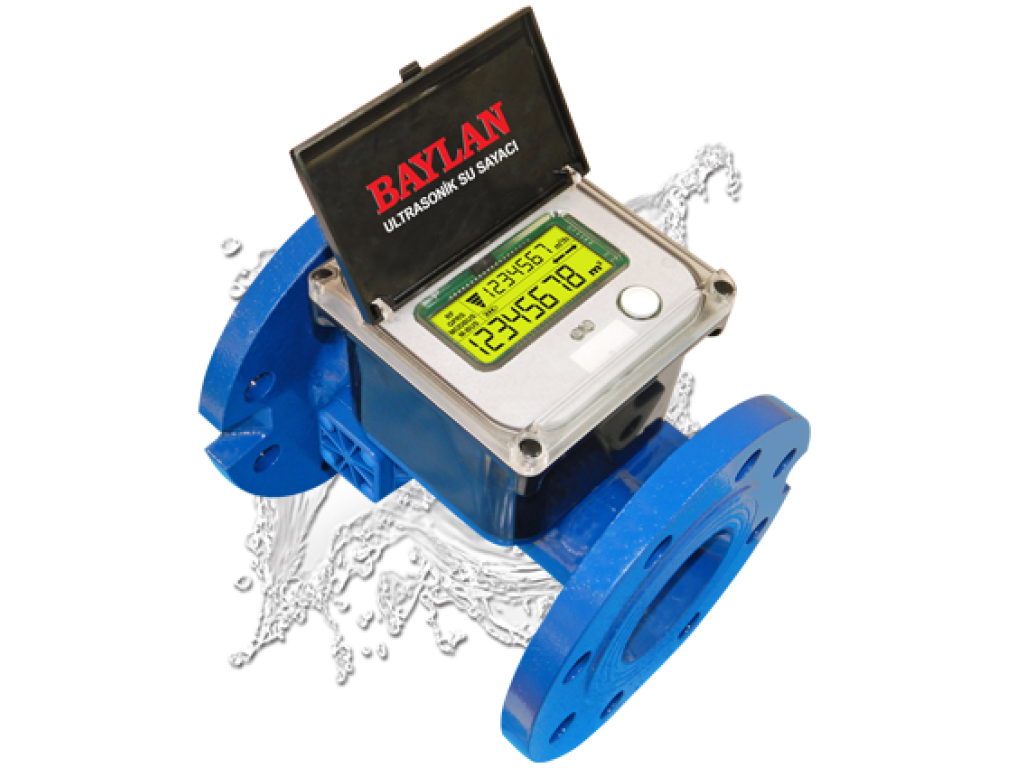

product image
