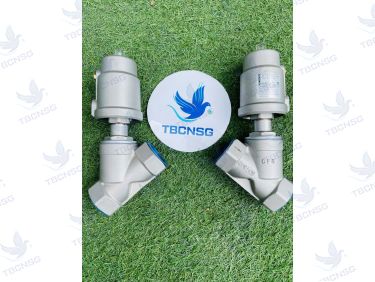

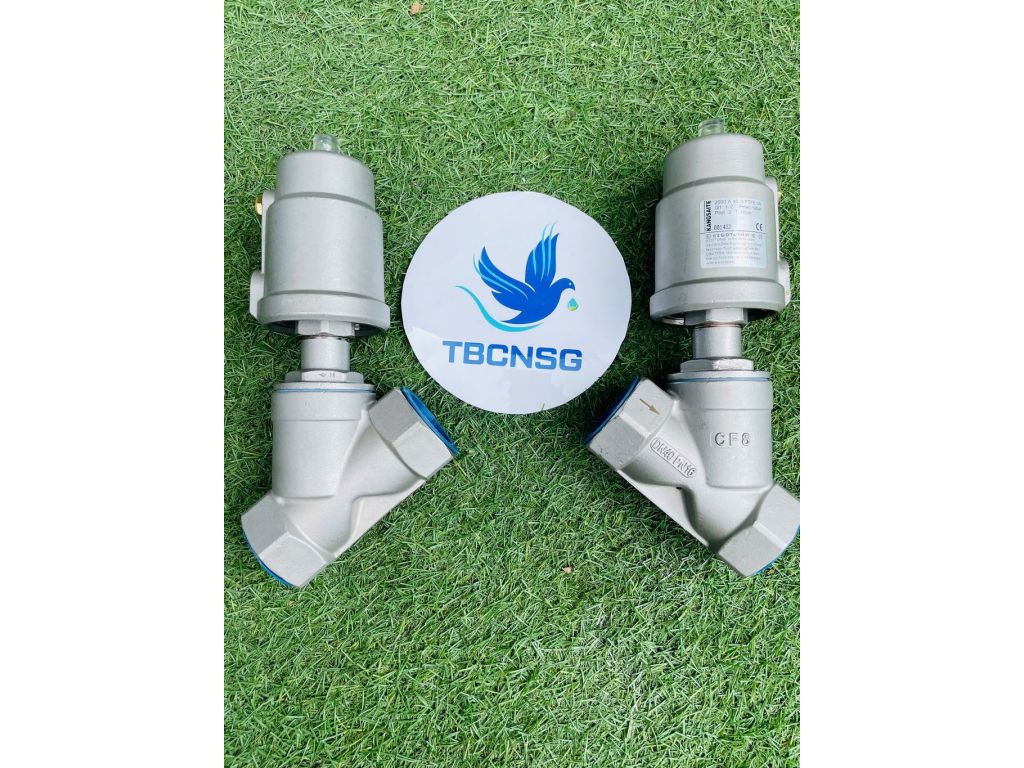

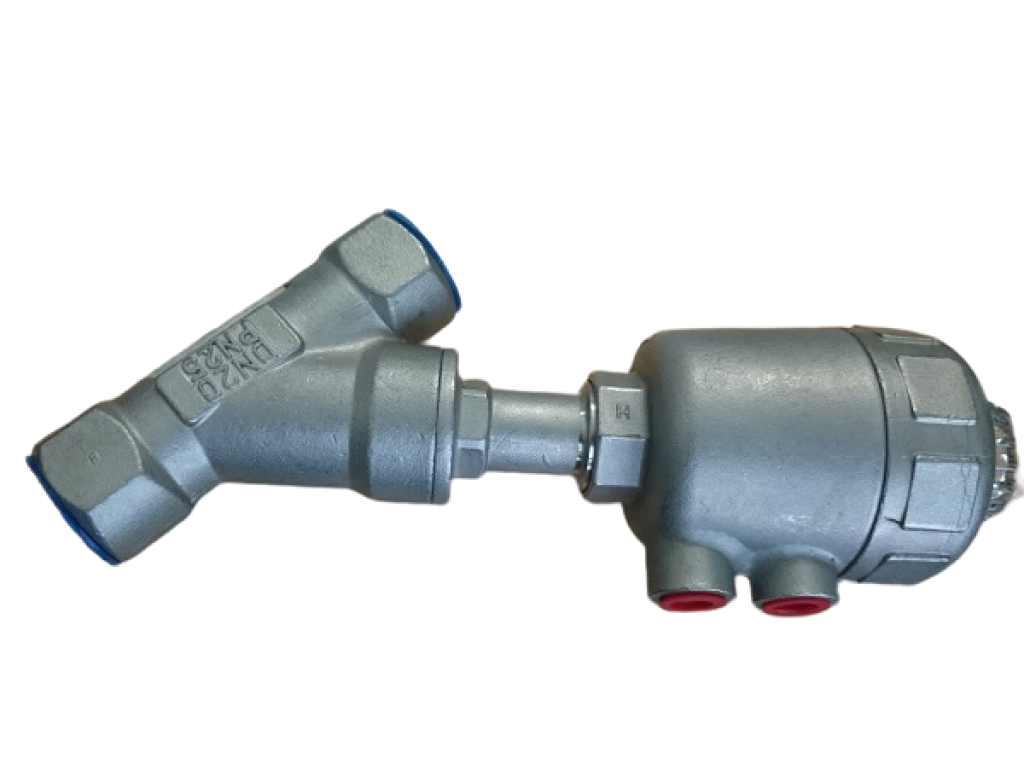

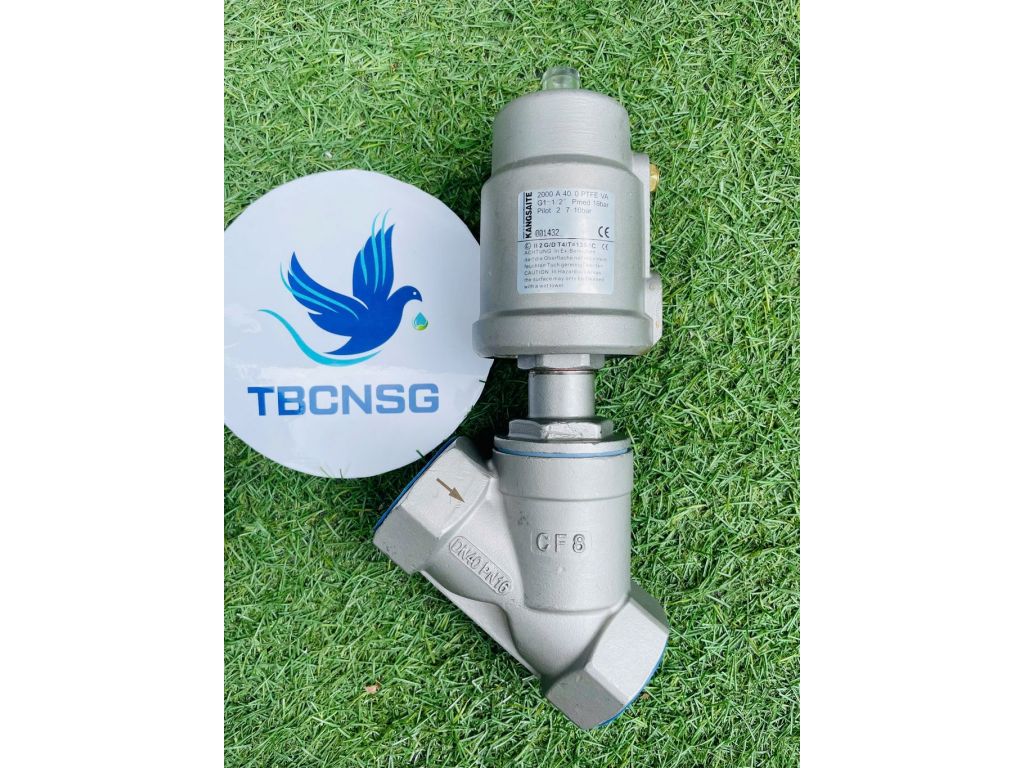

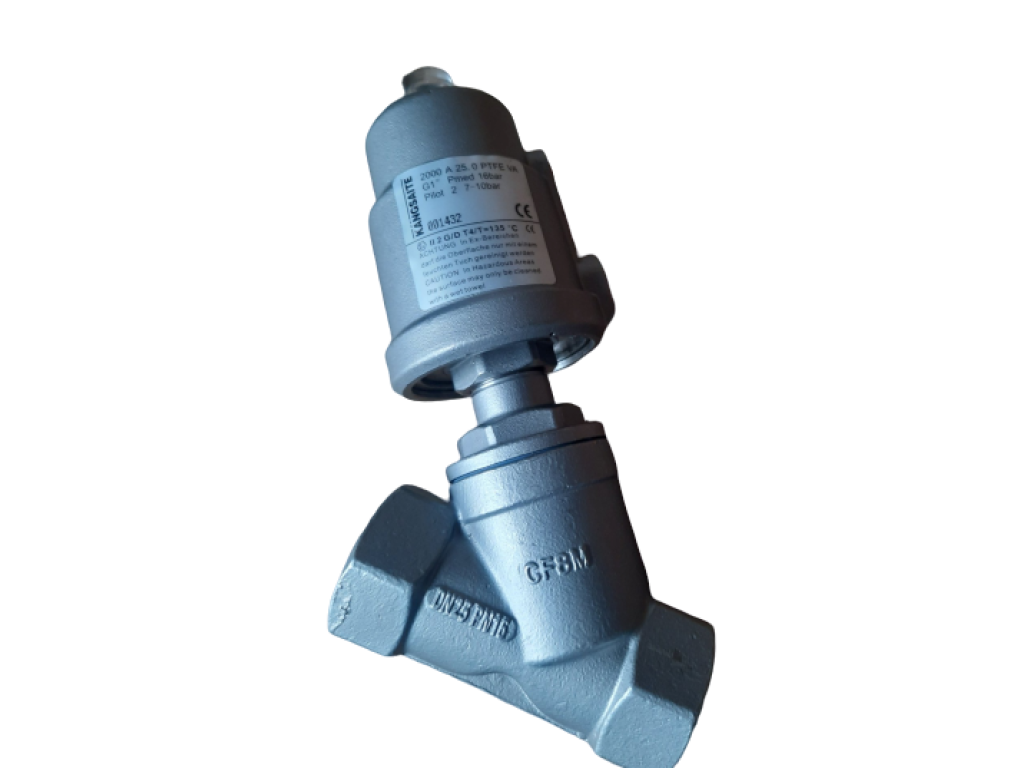

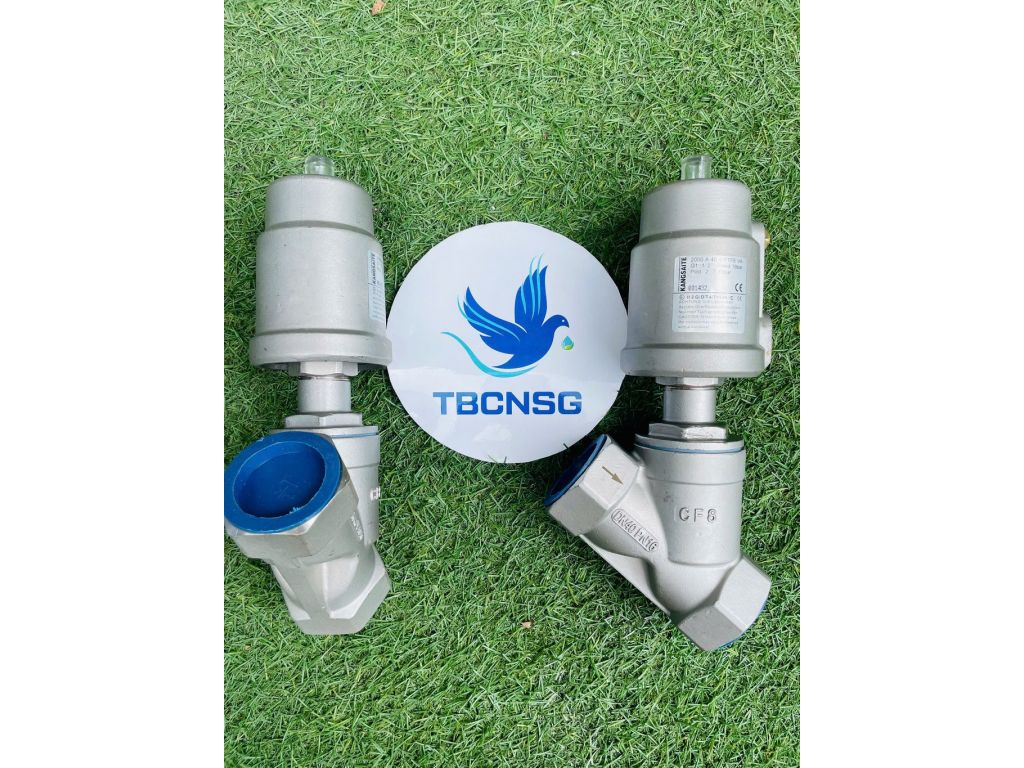

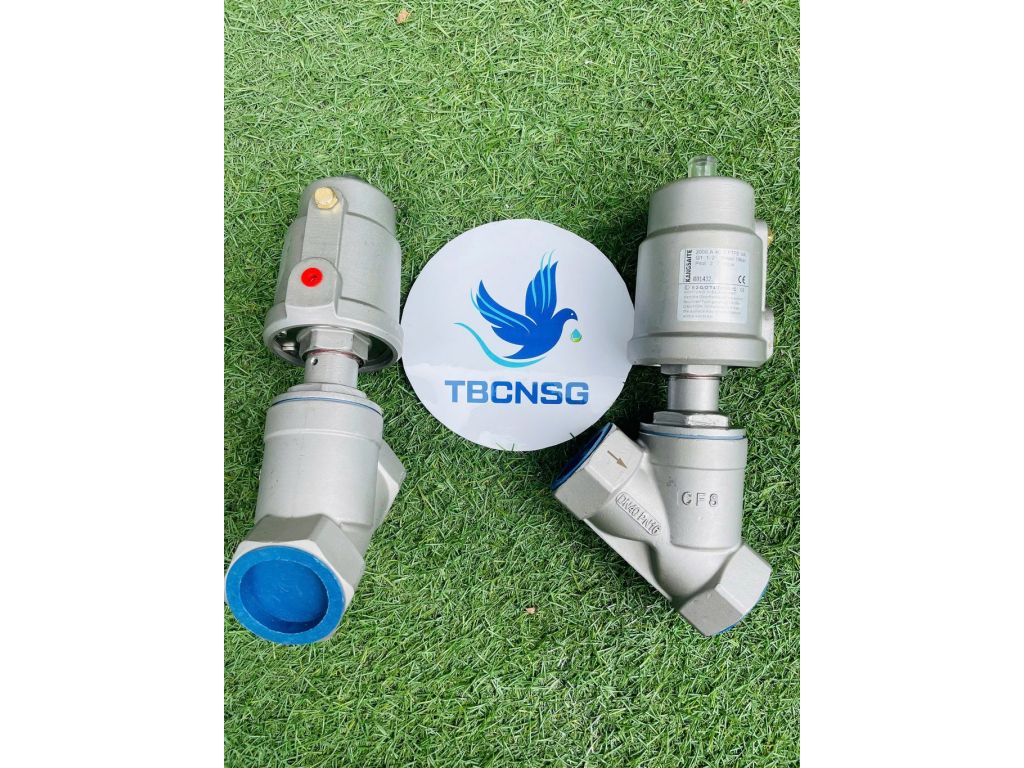

Van xiên khí nén Kangsaite

Thông tin sản phẩm

Van xiên khí nén Kangsaite hàng nhập từ Trung Quốc. Chất lượng ổn định, sử dụng được trong môi trường khắc nghiệt. Giá thành hấp dẫn, luôn có hàng trong kho.

Pneumatic Stainless Steel Flanged Angle Seat Valve,Angle Piston Valve Features

1. Easy to Install

2. Infinitely Rotable Actuator Allows Pneumatic Connection in Any Postion

3. 50% More Economical Than Ball Valves

4. 600% Longer Service Life Than Ball Valves

5. Compact Design

6. Fast Response

7. Water hammer-free

Pneumatic Stainless Steel Flanged Angle Seat Valve,Angle Piston Valve Specifications

1). Nominal Diameter: DN15-100

2). Pressure Range: 0-1.6Mpa

3). Medium Temp.: -10°C~+180°C

4). Ambient Temp.: -10°C~+60°C

5). Operating Pressure: 3-8bar

6). Valve Body Material: Stainless Steel, CF8/304,CF8M/316

7). Sealing Material: PTFE

8). Actuator Material: Plastic, Stainless Steel, CF8/304, CF8M/316

9). Medium: Neutral Gas, Air, Water, Vapor

10). Connection: Flanged, Clamped, Welding, Thread (BSP, BSP
