Van kiểm soát chênh áp Danfoss AVPL

  • Giá bán: Liên hệ nhận báo giá
  • Danh mục: Van công nghiệp
  • Thương hiệu: Danfoss
  • Bảo hành: Có
  • Xuất xứ: Chính hãng
  • Hỗ trợ giao hàng: Có

    Thông tin sản phẩm

    Van kiểm soát chênh áp Danfoss AVPL hay còn gọi là bộ kiểm soát chênh áp Danfoss AVPL. Trong tiếng Anh van này gọi là Differential pressure controllers valve.

    Đây là sản phẩm van kiểm soát chênh áp của hãng Danfoss nổi tiêng thế giới. Sản phẩm này nối ren hai đầu và có cấu tạo thân bằng đồng.

    Thông số kỹ thuật van kiểm soát chênh áp Danfoss AVPL (003L5030)

    Actuator diaphragm material EPDM
    Application Heating and cooling
    Cavitation factor 0.5
    Cavitation factor 100% 0.18
    Cavitation factor 25% 0.56
    Cavitation factor 50% 0.4
    Cavitation factor 75% 0.32
    Connection size G 3/4 A
    Connection types External Thread
    Description AVPL PN16 15/1 0,05-0,25 ext. thr ret
    Diameter [mm] 15 mm
    Differential pressure range [bar] [Max] 4.5 bar
    Differential pressure setting [bar] [Max] 0.25 bar
    Differential pressure setting [bar] [Min] 0.05 bar
    Flow control No
    Flow limitation No
    Function Diff. press. controller
    Function VSP - P Yes
    Function VSP - Q No
    Function VSP - T No
    Kvs values [m³/h] 1 m³/h
    Media pH [Max] 10
    Media pH [Min] 7
    Media temperature [°C] [Max] 120 °C
    Media temperature [°C] [Min] 2 °C
    Medium alternative Glycolic water up to 30%
    Mounting version Return
    Number of ports 2
    Permissible media Circulation water
    PN alternative VSP 10
    Pressure controller Differential pressure controller
    Pressure nominal [bar] 16 bar
    Product group Pressure flow controllers
    Setting type Adjustable
    Stem position Normally open
    Type AVPL
    Valve body material DZR brass CuZn36Pb2AS (CW 602N)
    Valve cone DP material Stainless steel
    Valve seat material Stainless steel

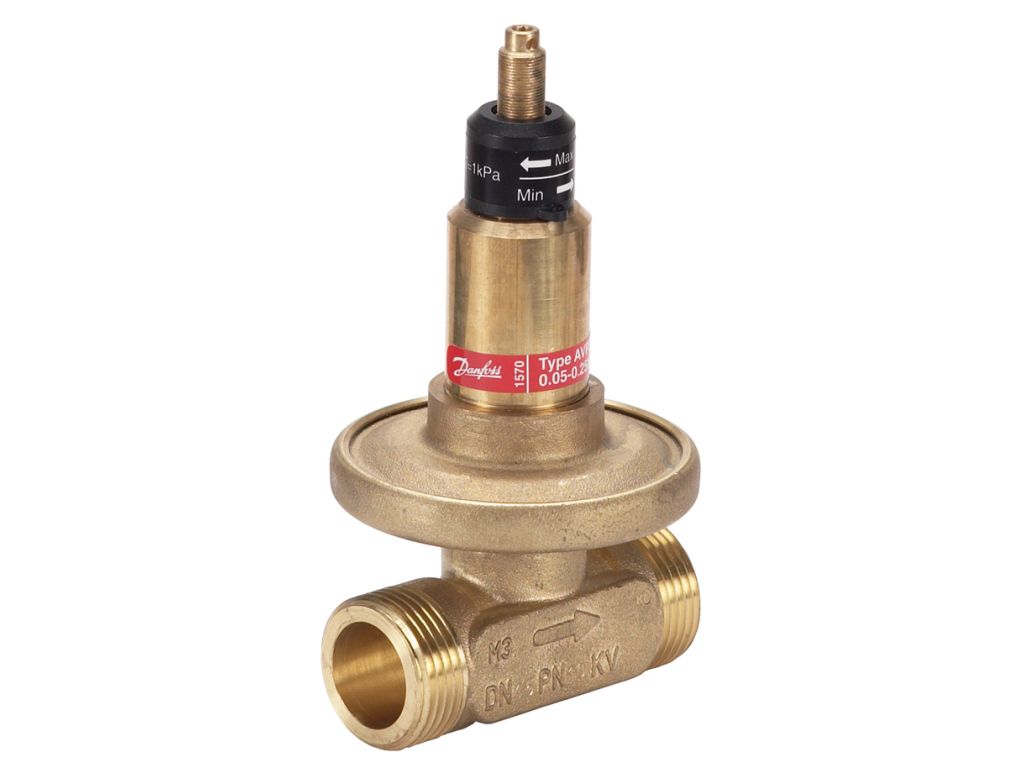

    Hình ảnh sản phẩm

    product image
