Van bướm Ayvaz

Giá: Liên hệ để nhận báo giá

  • ...

    Ms Trang Phòng kinh doanh

    0969 303 848 (Ưu tiên Zalo chat)

  • ...

    Ms Ngân Phòng kinh doanh

    0909 221 246 (Ưu tiên Zalo chat)

  • ...

    Ms Huệ Phòng kinh doanh

    09 1800 6799 (Ưu tiên Zalo chat)

  • ...

    Ms Nga Phòng kinh doanh

    09 1800 3799 (Ưu tiên Zalo chat)

Thông tin Van bướm Ayvaz

Van bướm Ayvaz

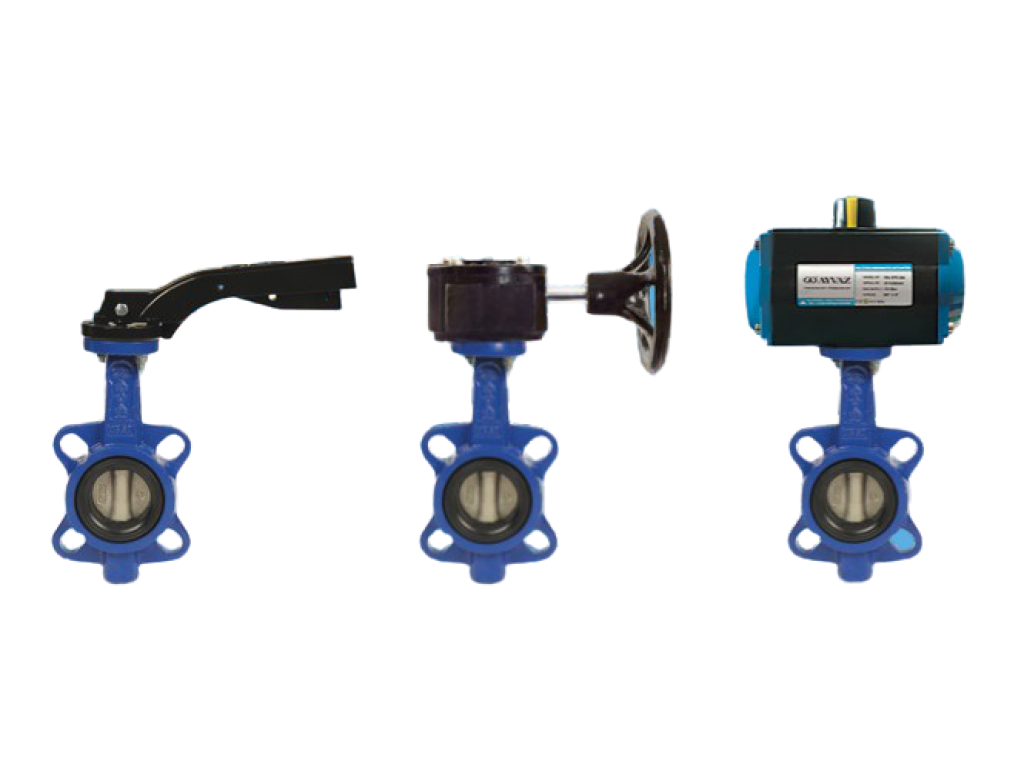

Van bướm Ayvaz tay gạt và tay quay nhập khẩu từ Thổ Nhĩ Kỳ. Mặc định sản phẩm xuất xưởng là dạng tay gạt. Tuy nhiên nếu nhu cầu của quý khách hàng cần sử dụng động cơ điều khiển van có thể lắp đặt thêm động cơ điều khiển bằng khí nén hoặc bằng điện đều được.

Van bướm Ayvaz có nhiều loại khác nhau về chất liệu chế tạo thân, đĩa, gioăng... Ngoài ra khác nhau về tiêu chuẩn sản xuất, áp lực chịu đựng. Hãy chú ý kỹ các yêu cầu cần thiết khi lựa chọn ban bướm.

Van bướm Ayvaz cũng như các loại van khác gọi là buttefly valve, đây là một loại van đóng ngắt dòng chảy dùng khá phổ biến. Van bướm có ưu điểm gọn nhẹ, dễ lắp đặt và chiếm ít không gian. Cấu tạo của van bướm cũng khá đơn giản nên nếu có hỏng hóc cũng dễ dàng sửa chữa thay thế.

Van bướm Ayvaz KV-1

Product Material

Body: Cast Iron

Disc: AISI 316 Stainless Steel

Shaft: SS420

Application Areas:

-Heating,ventilating and air conditioning systems

-Water treatment and distributing systems

-Mining industry

-Shipbuilding and drilling plant

-Food and chemistry industries

-Fire extinguisher systems

-Water, sea water, dust, gas, wastewater and air

Notes:

It is recommended to use reducer type for all diameters in butterfly valves. There are only reducer type production

on DN350 and above Butterfly valves.

Actuator Types

- Hand operated

- Reducer

- Single Action Pneumatic Actuator

- Double Action Pneumatic Actuator

- With Electric Actuator / On-Off (Manual Arm)

Van bướm Ayvaz KV-3

Butterfly valve’s working principle; The disc fixes a shaft spin herewith the valve close or open. Leak tightness is provided between disc and seal.

Advantages;

Minimal loss of pressure

Easy to opening and closing

Good leak tightness

Compact design

Easy movement of the disk should be controlled during the assembling

Horizontal assembling should be preferred above DN300

Material Structure:

Body: GG25 cast iron

Disc: AISI 316 stainless steel

Connection:

Wafer type

Nominal Diameter:

DN25 (1”) - DN600 (24”)

Working Pressure:

Up to 16 bars

Temperature Ratings:

-10ºC to 130ºC

Typical Applications:

Heating air-conditioning systems

Water purification system

Mining industry

Shipbuilding

Chemical industry

Food industry

Oil and gas industry

Fire extinguishing system

Van bướm Ayvaz KV-4

Butterfly valve’s working principle;

The disc fixes a shaft spin herewith the valve close or open. Leak tightness is provided between disc and seal.

Advantages;

Minimal loss of pressure

Easy to opening and closing

Good leak tightness

Compact design

Easy movement of the disk should be controlled during the assembling

Horizontal assembling should be preferred above DN300

Material Structure:

Body: GG25 cast iron

Disc: AISI 316 stainless steel

Connection:

Lug type

Nominal Diameter:

DN25 (1”) - DN600 (24”)

Working pressure:

Up to 16 bars

Temperature ratings:

-10ºC to 130ºC

Typical Applications:

Heating air-conditioning systems

Water purification system

Mining industry

Shipbuilding

Chemical industry

Food industry

Oil and gas industry

Fire extinguishing system

Van bướm Ayvaz KV-7

Butterfly valve’s working principle;

The disc fixes a shaft spin herewith the valve close or open. Leak tightness is provided between disc and seal.


Advantages;


Minimal loss of pressure

Easy to opening and closing

Good leak tightness

Compact design


Easy movement of the disk should be controlled during the assembling

Horizontal assembling should be preferred above DN300


Material Structure:

Body: GG25 Cast iron

Disc: Nickel coated ductile iron


Connection:

Wafer type


Nominal Diameter:


DN25 (1”) - DN600 (24”)


Working Pressure:

Up to 16 bars


Temperature Ratings:

-10ºC to 130ºC


Typical Applications:

Heating air-conditioning systems

Water purification system

Mining industry

Shipbuilding

Chemical industry

Food industry

Oil and gas industry

Fire extinguishing system

Van bướm Ayvaz KV-8

Butterfly valve’s working principle; The disc fixes a shaft spin herewith the valve close or open. Leak tightness is provided between disc and seal.


Advantages;


Minimal loss of pressure

Easy to opening and closing

Good leak tightness

Compact design


Easy movement of the disk should be controlled during the assembling

Horizontal assembling should be preferred above DN300


Material Structure:

Body: GG25 Cast iron

Disc: Nickel coated ductile iron


Connection:

Lung type


Nominal Diameter:

DN25 (1”) - DN600 (24”)


Working Pressure:

Up to 16 bars


Temperature Ratings:

-10ºC to 130ºC


Typical Applications:

Heating air-conditioning systems

Water purification system

Mining industry

Shipbuilding

Chemical industry

Food industry

Oil and gas industry

Fire extinguishing system

Product Brochure

Van bướm Ayvaz KV-9

Butterfly valve’s working principle; The disc fixes a shaft spin herewith the valve close or open. Leak tightness is provided between disc and seal.


Advantages;


Minimal loss of pressure

Easy to opening and closing

Good leak tightness

Compact design


Easy movement of the disk should be controlled during the assembling

Horizontal assembling should be preferred above DN300

They are designed for natural gas plumbing and they are produced according to TSE


Material Structure:

Body: GGG- 40,3 ductile iron

Disk: AISI 316 stainless steel


Connection:

Wafer type


Nominal Diameter:

DN25 (1”) - DN600 (24”)


Working Pressure:

Up to 16 bars


Temperature Ratings:

-10ºC to 130ºC


Typical Applications:

LNG and LPG lines

Fuel oil pipelines

Van nướm Ayvaz KV-10

Butterfly valve’s working principle; The disc fixes a shaft spin herewith the valve close or open. Leak tightness is provided between disc and seal.


Advantages;


Minimal loss of pressure

Easy to opening and closing

Good leak tightness

Compact design


Easy movement of the disk should be controlled during the assembling

Horizontal assembling should be preferred above DN300

They are designed for natural gas plumbing and they are produced according to TSE


Material Structure:

Body: GGG- 40,3 ductile iron

Disk: AISI 316 stainless steel


Connection:

Lung type


Nominal Diameter:

DN25 (1”) - DN600 (24”)


Working Pressure:

Up to 16 bars


Temperature Ratings:

-10ºC to 130ºC


Typical Applications:

LNG and LPG lines

Fuel oil pipelines

Van bướm Ayvaz KV-13

KV-13 Butterfly Valve

AYVAZ KV-13 Wafer Type Butterfly Valves are designed for installation between flanges drilled in accordance with DIN, ANSI, BS standard and with the hand lever operation. For Wafer Type Butterfly Valve, for DN32-DN600, all the flange are suitable for ANSI150, PN10 and PN16 standard, for DN700 and above, all the flange standard are product individually. Applicable fluids: Sea water, water, warm water, air and weak acid.


For other kinds of applicable fluids except the above, to which The Butterfly Valve becomes applicable, please kindly consult to our SALES DEPARTMENT.


Ordering the various kinds of AYVAZ Butterfly Valves, please refer to Order Code for detail.


Typical Applications

- HVAC Industries

-Heating, ventilating and air conditioning

- Water treatment and distribution systems

- Mining Industries

- Shipbuilding and off-shore Industries

- Chemical and petrochemical plants

- Sugar Industry, food and chemistry processing

- Oil and gas process

- Fire fighting and sanitary systems


Notes

Gear Box recomended for sizes DN125, DN150, DN200. Above DN200 we supply with Gear Box.

Van bướm Ayvaz KV-14


KV-14 Butterfly Valve

The closing element in the butterfly valves is a rotating shaft that is placed on a vertical axis. The sealing is provided between the metal flap and the elastic or plastic sealing elements covering the inside of the body. The sealing element also serves as a flange seal between the valve and the pipe.


Advantages of such valves are; low pressure loss, easy opening and closing, good sealing, light weight and small footprint.


The Ayvaz KV-14 Wafer Type Butterfly Valves should be checked to see if they are moving freely during the installation. The valve stem may be horizontal or vertical. However, horizontal installation on DN300 should be preferred.


Product Features:

Body: GGG 40.3 Cast Iron

Disc: AISI 316 Stainless Steel

Stem: AISI 416 Stainless Steel

Max. Working Temperature: 110 ºC

Connection: Lug Type


Application Areas

-Heating,ventilating and air conditioning systems

-Water treatment and distributing systems

-Mining industry

-Shipbuilding and drilling plant

-Chemical and petrochemical plants

-Sugar industry,food and chemistry industries

-Fire extinguisher systems


Notes:

It is recommended to use reducer type for all diameters.There are only reducer type production on DN350 and above Butterfly valves.


Actuator Types

- Hand operated

- Reducer

- Single Action Pneumatic Actuator

- Double Action Pneumatic Actuator

- With Electric Actuator / On-Off (Manual Arm)

Van bướm Ayvaz KV-17


KV-17 Butterfly Valve

The closing element in the butterfly valves is a rotating shaft that is placed on a vertical axis. The sealing is provided between the metal flap and the elastic or plastic sealing elements covering the inside of the body. The sealing element also serves as a flange seal between the valve and the pipe.


Advantages of such valves are; low pressure loss, easy opening and closing, good sealing, light weight and small footprint.


The Ayvaz KV-17 Wafer Type Butterfly Valves should be checked to see if they are moving freely during the

installation. The valve stem may be horizontal or vertical. However, horizontal installation on DN300 should be

preferred.


Product Material

Body: GGG-40.3 Cast Iron

Stem: AISI 416 Stainless Steel

Disc: Aluminium Bronze

Connection:Wafer Type

Max. Working Temperature: 80 °C


Application Areas

-Heating,ventilating and air conditioning systems

-Water treatment and distributing systems

-Mining industry

-Shipbuilding and drilling plant

-Chemical and petrochemical plants

-Sugar industry,food and chemistry industries

-Fire extinguisher systems


Notes:

It is recommended to use reducer type for DN 125, DN 150, DN 200 diameters in butterfly valves. There are only

reducer type production on DN200 and above for KV 17 Butterfly valves.


Actuator Types

- Hand operated

- Reducer

- Single Action Pneumatic Actuator

- Double Action Pneumatic Actuator

- With Electric Actuator / On-Off (Manual Arm)

Van bướm Ayvaz KV-18

KV-18 Butterfly Valve

The closing element in the butterfly valves is a rotating shaft that is placed on a vertical axis. The sealing is provided between the metal flap and the elastic or plastic sealing elements covering the inside of the body. The sealing element also serves as a flange seal between the valve and the pipe.


Advantages of such valves are; low pressure loss, easy opening and closing, good sealing, light weight and small footprint.


The Ayvaz KV-4 Lug Type Butterfly Valves should be checked to see if they are moving freely during the installation. The valve stem may be horizontal or vertical. However, horizontal installation on DN300 should be preferred.


Product Features

Body: GGG-40.3 Cast Iron

Disc: Aluminium Bronze

Stem: AISI 416 Stainless Steel

Connection: Lug Type

Temperature: Max. Working Temperature: 80 ºC


Application Areas

-Heating,ventilating and air conditioning systems

-Water treatment and distributing systems

-Mining industry

-Shipbuilding and drilling plant

-Food and chemistry industries

-Fire extinguisher systems

-Water, dust, gas, waste water and air.


Notes:

It is recommended to use reducer type for all diameters in butterfly valves. There are only reducer type production on DN350 and above Butterfly valves.


Actuator Types

- Hand operated

- Reducer

- Single Action Pneumatic Actuator

- Double Action Pneumatic Actuator

- With Electric Actuator / On-Off (Manual Arm)

Sản phẩm Van bướm Ayvaz đang được bán tại Công Ty Cổ Phần Đầu Tư Xuất Nhập Khẩu Thiết Bị Công Nghiệp Sài Gòn. Để biết giá sản phẩm và tình trạng hàng hóa vui lòng liên hệ trực tiếp với nhân viên kinh doanh của chúng tôi.

Quý khách có thể xem thêm các sản phẩm khác của thương hiệu Ayvaz tại đây!
