Đồng hồ nước PoWogaz mặt bích
- Giá bán: Liên hệ nhận báo giá
- Thương hiệu: Apator Powogaz
- Xuất xứ: Ba Lan
- Bảo hành: Có
- Hỗ trợ giao hàng: Có
Thông tin sản phẩm
Apator warter meter for measuring of consumption of greater amounts of cold water with a temperature up to 30 °C or 50 °C, or hot water with a temperature up to 130 °C, on the maximum working pressure up to 16 bar (PN16). Suitable for installation in the horizontal hoses (pipelines) with the counter directed upwards (H), in vertical or horizontal hoses with the counter directed sidewards (V) or in diagonal hoses (H/V). MWN water meters in standard version are equipped with six-barrel counter (IP65, IP68 – optional) and painted cast-iron housing. Water meters are adapted to operation in the systems of remote data transfer (AMR).
Đồng hồ nước Apator PoWoGaz (Công tơ nước sạch) xuất xứ từ Balan đạt tiêu chuẩn đo lường và tiêu chuẩn chất lượng EU.
Ưu điểm của đồng hồ nước Apator
- Vật liệu gang bền bỉ trong mọi môi trường
- Bề mặt hiển thị số dễ đọc, mặt kính bền không bị mờ theo thời gian
- Độ chính xác cao, sai số rất thấp
- Kết nối dạng ren hoặc mặt bích
- Dễ dàng thi công, lắp đặt bảo trì.
- Áp lực vận hành: 0 - 16 bar
- Nhiệt độ làm việc: < 40°C cho dòng đồng hồ nước lạnh
Product features
- Preequipped for installation of: radio module for communication in the Wireless M-Bus and impulse module (not applicable to water meters for hot water and versions with NK, NO, NKO and NKOP transmitters)
- Wide measuring range
- Low starting rate
- Removable measuring panel
- Double-sided rotor bearing
- Easy reading of the water meter counter
- Hermetic counter - IP68 on request ****)
- Counter mechanism with blockade against multiple rotating, at rotation angle more than 360°
- Readings reliability
- On request possibility of another drilling
Basic technical data
| Type | Q3 [m3/h] |
DN [mm] |
Length [mm] |
Connection |
|---|---|---|---|---|
| Dòng đồng hồ nước lanh | ||||
| MP 40-01-XX* | 25 | 40 | 300 | Flange*** |
| MP 50-01-XX* | 25 | 50 | 200 / 270 / 300** | flange*** |
| MP 65-01-XX* | 40 | 65 | 300 | flange*** |
| MP 80-01-XX* | 63 | 80 | 300 / 350** | flange*** |
| MP 100-01-XX* | 100 | 100 | 360 / 350** | flange*** |
| Dòng đồng hồ nước nóng | ||||
| MP130 40-01-XX* | 15 | 40 | 300 | flange*** |
| MP130 50-01-XX* | 15 | 50 | 200 / 270 / 300** | flange*** |
| MP130 65-01-XX* | 25 | 65 | 300 | flange*** |
| MP130 80-01-XX* | 40 | 80 | 300 / 350** | flange*** |
| MP130 100-01-XX* | 60 | 100 | 360 / 350** | flange*** |
*) Water meters designs – where -XX stands for:
-NK – water meter with pulse transmitter (Read relay) – remote transmission of volume counting
-NO – opto-electronic transmitter (not applicable to water meters for hot water) – remote transmission of volume counting
-NKO – water meter equipped with NK and NO transmitter
-NKOP – water meter adapted for installation of NK and NO transmitter
**) On request (housing length according to ISO 4064)
***) Flange drilling: according to PN-EN 1092-2 (PN10), DIN 2532, DIN2501 (NP10), BS4504 (NP10)
****) O n request hermetic counter IP68 – cold water only, pre equipped for radio transmitters - Wireless M-Bus standard or NK transmitter with pulse range 10, 100, or 1000 dm3/imp. (not applicable to NO and NKO)

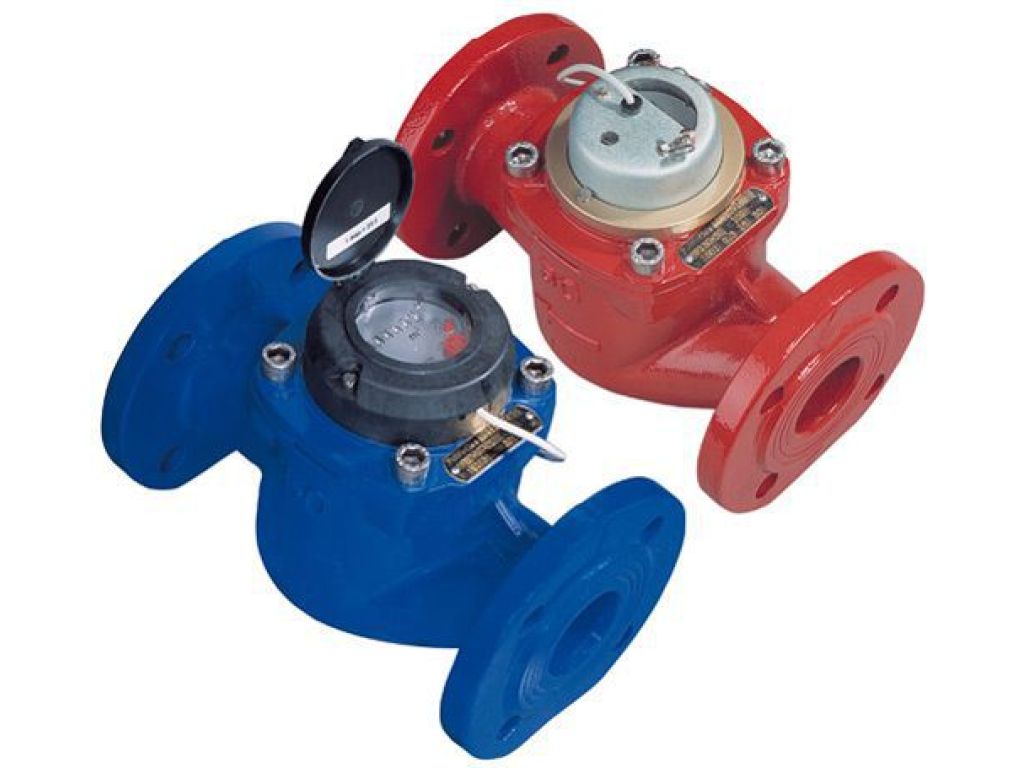

Hình ảnh sản phẩm
Cập nhật lần cuối: 2023-02-26 09:14:16
