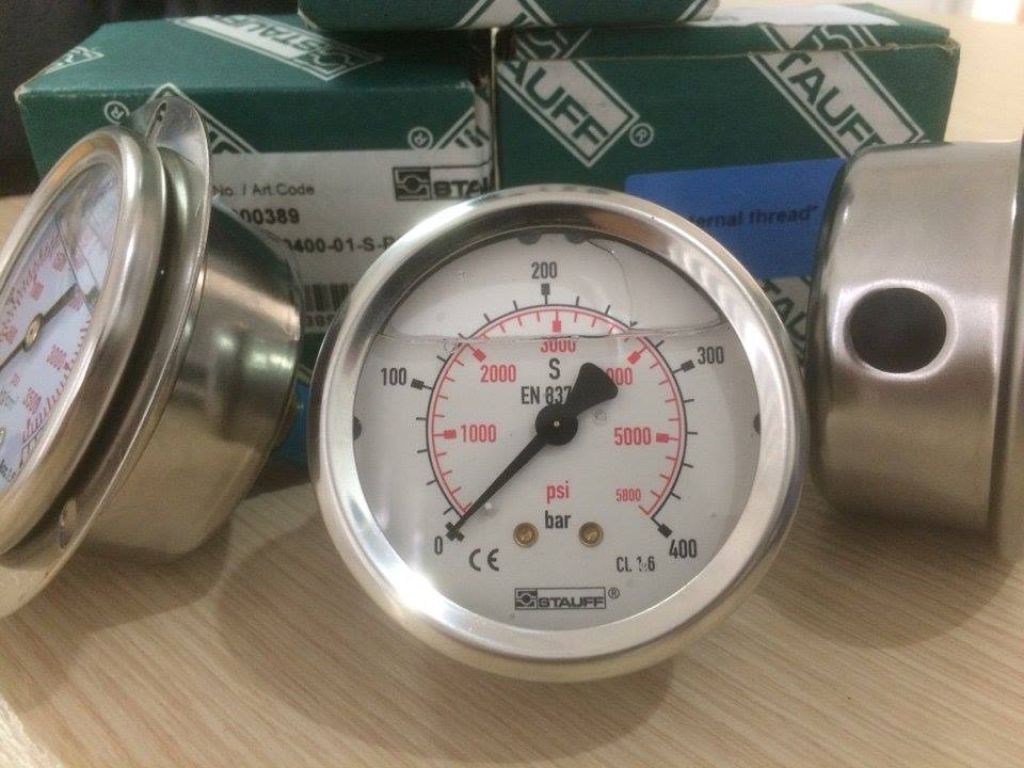

Đồng Hồ Áp Suất Dầu Stauff | Stauff Pressure Gauge

Thông tin sản phẩm

+ Suitable for hydraulic oil and gaseous media  compatible with copper based alloys
+ Available in nominal sizes 63 and 100 mm / 2.5 and 4 in § Thread form: for BSP (G1/4 and G1/2), NPT (1/4 NPT and 1/2 NPT), SAE (7/16–20 UNF) § Stainless Steel (1.4301) housing
+ Acrylic sight glass
+ Glycerine filled
+ Standard dual scales with pressure indication

REN: NPT, BSPP

G1/4 (only SPG 063)
G1/2 (only SPG 100)
1/4 NPT (only SPG 063)
1/2 NPT (only SPG 100)
7/16–20 UNF (only SPG 063)

THANG ĐO:

1 … 1,5 bar / -14.5 … 21 PSI -1 … 3 bar / -14.5 … 43 PSI 0 … 10 bar / 0 … 145 PSI

0 … 16 bar / 0 … 232 PSI 0 … 25 bar / 0 … 362 PSI 0 … 40 bar / 0 … 580 PSI 0 … 60 bar / 0 … 870 PSI

0 … 100 bar / 0 … 1450 PSI 0 … 160 bar / 0 … 2320 PSI 0 … 250 bar / 0 … 3625 PSI 0 … 400 bar / 0 … 5801 PSI 0 … 600 bar / 0 … 8702 PSI 0 … 680 bar / 0 … 9862 PSI 0 … 700 bar / 0 … 10152 PSI 0 … 1000 bar / 0 … 14503 PSI

DẦU: GLYCERIN

SPG-063: 1.6 (± 1.6 % FS* as per EN 837-1)

SPG-100: 1.0 (± 1.0 % FS* as per EN 837-1)

+ IP 65: for all manometer SPG 100 and  SPG 063 > 25 bar / 362 PSI
IP 65 protection rating: Dust tight  and protected against water jets for all manometer SPG 063
≤ 25 bar /362 PSI due to pressure  compensation opening
IP 54 protection rating: Dust  protected and protected against  splashing water
