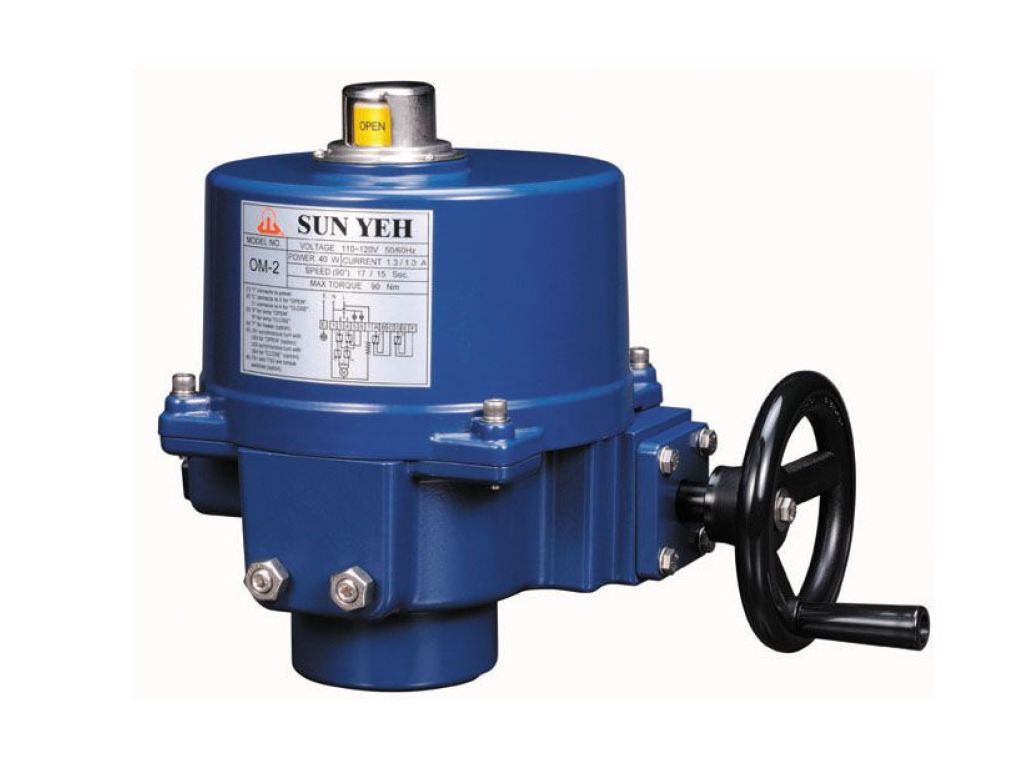

Sun Yeh OM-3. Đầu điều khiển điện Sun Yeh OM-3 Đài Loan

    Thông tin sản phẩm

    Chúng tôi cung cấp các loại đầu điều khiển van hiệu Sunyeh mã hiệu OM3. Đây là loại motor điều khiển van phổ biến sử dụng điện áp 220V công suất 40W. Sun Yeh OM-3. Đầu điều khiển điện Sun Yeh OM-3 Đài Loan.



    Hình ảnh



    Power:40W
    Max Torque:90 N.m/797 lb.in
    Speed:15 Sec/90°
    Weight:11 kg/24.25 lb
    Manual Override:Hand-Wheel
    Mounting Flange(ISO 5211):F07

    Enclosure :
    ● IP67、NEMA 4X : Water-proof and dust-proof enclosure.
    ● Material : Dry powder coating aluminum alloy.

    Motor :
    ● F (Standard) or H (Optional) insulation class for all models.
    ● Built-in thermal protection prevents motor burning out.
    AC motor:125±5℃/257±9℉
    DC motor:90±5℃/194±9℉

    Duty Cycle :
    ● OM-2:30% duty cycle (Standard Model)
    ● OM-2:75% duty cycle (Optional)

    Working Conditions :
    ● Ambient temperature:-30℃ ~ +65℃ / -22℉ ~ +149℉
    ● The humidity:30% ~ 95%

    Position Indicator :
    ● All models have continuous mechanism position indicator on the top of actuator cover.

    Manual Override :
    ● Non-clutch design, the manual operation can be operated without any lever, clutch or brake upon power outage.
    ● When electric motor is operating, hand-wheel won’t rotate for personal safety purpose.

    Gear Train :
    ● High alloy steel gear trains provide self-locking function to avoid valve back drive.
    ● Gear trains have been already lubricated sufficiently with anti-high temperature lubricant at the factory.

    Conduit entrance:
    ● Standard : 1/2" PS
    ● Optional : 3/4" PF, 1/2" NPT, M20

    Điện áp sử dụng:
    ● AC/DC 12V
    ● AC/DC 24V
    ● AC 110/220V,1-Phase

    ● AC 220/380/440V,3-Phase

    Enclosure:
    ● Nylon coating
    ● E.D. coating
    ● Epoxy coating

    Motor insulation class:
    ● Standard: F class
    ● Optional: H class

    Water-proof rating:
    ● IP 68

    Working angle:
    ● Standard:0~90°
    ● Optional:91~270°



    Hình ảnh



    Hình ảnh



    Hình ảnh



    Hình ảnh



    Hình ảnh



    Hình ảnh

    Hình ảnh sản phẩm
