Thông tin sản phẩm
** Sản phẩm này thường không có sẵn trong kho. Vui lòng liên hệ trước
Dimensions มิติ (mm.)
Size |
L |
H |
h |
A |
B |
D |
K |
I |
8" |
350 |
163 |
245 |
475 |
340 |
340 |
295 |
22 |
10" |
450 |
193 |
242 |
472 |
405 |
405 |
350 |
23 |
12" |
500 |
230 |
290 |
520 |
460 |
460 |
400 |
23 |
16" |
500 |
290 |
311 |
580 |
580 |
580 |
515 |
27 |
20" |
500 |
360 |
360 |
660 |
715 |
715 |
620 |
27 |
Application
- Cold water up to 30 ๐C (Safe up to 50 ๐C)
- Can be installed in any position
- Operating pressure up to 16 bar
- Flange to DIN 2501 and DIN 2533
- Overall Lengths to Din 19625 and DIN ISO 4064
- Encapsulated counter of glass/copper,
- protection class IP 68 (waterproof up to 5 m)
- Available with FLYpper R electronic counter modulefor
flow rate monitoring,data acquisition and remote data
reading-protection class IP 68 waterproof
Features
- EEC approval for metrological classes A/B
- Reverse running : Can be calibrated on request up to DN 65
- Removable measuring insert
- Sealed measuring insert for better accuracy in all installation positions
- Outstanding long-term accuracy through hydraulic bearing relief
- Wear-resistant plastic bearing
- Complete head unit with counter and sensors can be rotated by 350๐ for easier reading
- Integrated measurement outputs as standard
- Sensors for remote readout (digital) and flow measurement (analogue) can be retrofitted on site without affecting calibration
- Up to two different digital outputs and one analogue output simultaneously
- Sensors for forward and reverse metering
Technical Data
Model |
222 |
Performance data TYRBOT WP-MFD |
DN |
mm |
200 |
250 |
300 |
400 |
500 |
Permissible continuous load |
Qn |
m3/h |
325 |
600 |
700 |
1,250 |
2,000 |
Maximum load (1 x 24 h) |
Qmax |
m3/h |
650 |
1,200 |
1,500 |
2,800 |
4,200 |
Starting |
|
m3/h |
2.5 |
5 |
10 |
15 |
20 |
Horizontal Transition flow |
Qt |
m3/h |
6 |
20 |
50 |
50 |
80 |
Lower measuring range limit |
Qmin |
m3/h |
4 |
12 |
18 |
30 |
45 |
Vertical Transition flow |
Qt |
m3/h |
6 |
- |
- |
- |
- |
Lower measuring range limit |
Qmin |
m3/h |
4 |
- |
- |
- |
- |
Flow rate at 0.1 bar head loss |
|
m3/h |
550 |
800 |
1,250 |
3,000 |
6,000 |
Weight |
|
kg |
47 |
75 |
165 |
190 |
300 |

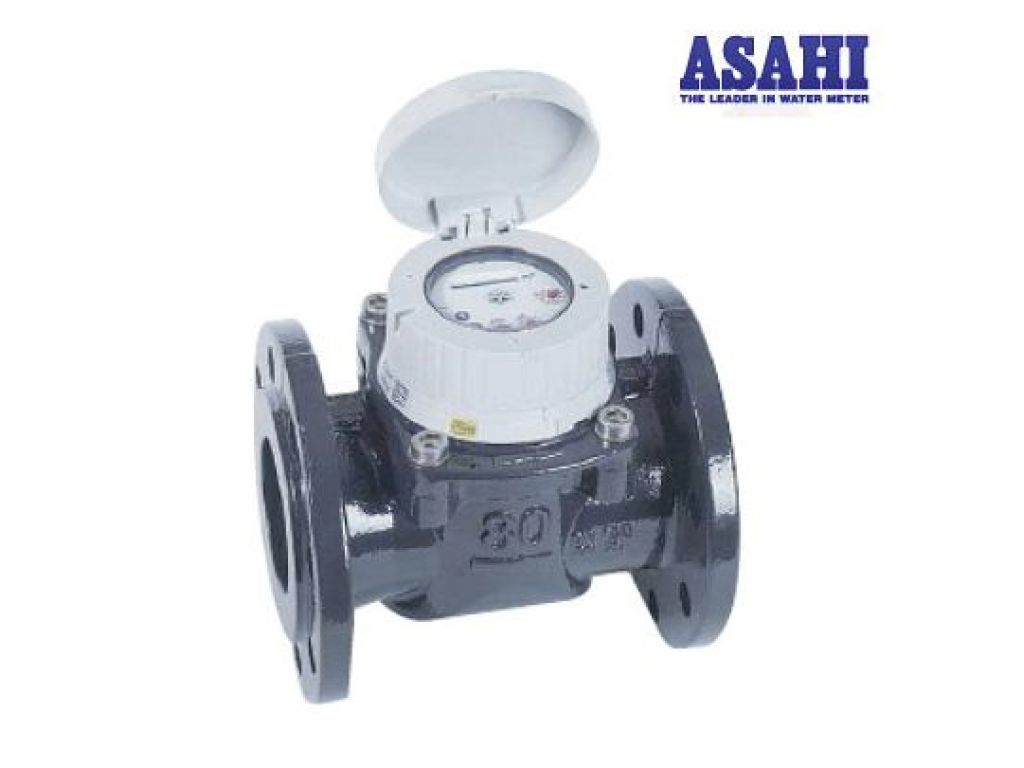

Hình ảnh sản phẩm
