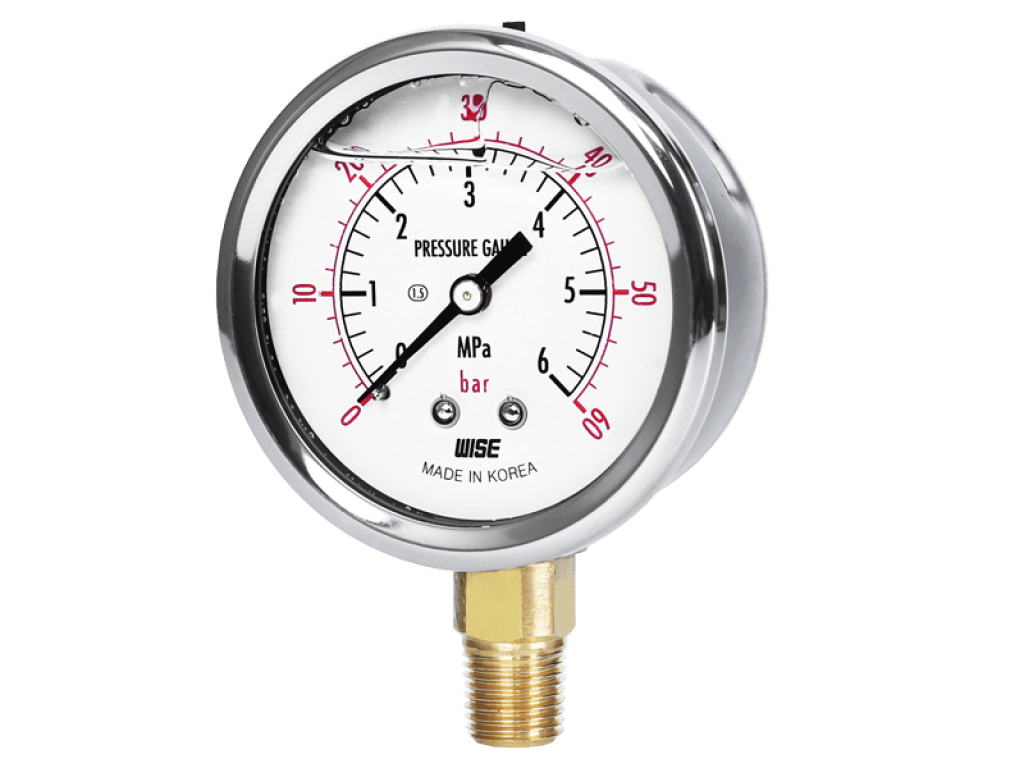

Đồng hồ áp suất Wise P254 series (có dầu)

  • Giá bán: Liên hệ nhận báo giá
  • Danh mục: Đồng hồ áp suất Wise
  • Thương hiệu: Wise
  • Bảo hành: Có
  • Xuất xứ: Chính hãng
  • Hỗ trợ giao hàng: Có

    Thông tin sản phẩm

    Đồng hồ áp suất Wise P254 series có dầu. Hàng đẹp mới 100% nhập từ Hàn Quốc, có sẵn trong kho, đầy đủ hóa đơn chứng từ. Hỗ trợ vận chuyển toàn quốc.

    Đồng hồ áp suất Wise P254 được thiết kế để đo tải áp suất động cao và nó có thể được sử dụng ở những nơi có rung động nghiêm trọng. Thiết bị này được khuyến nghị sử dụng với môi trường khí và lỏng không có độ nhớt cao và không được sử dụng ở những nơi có thể bị ăn mòn các bộ phận bằng hợp kim đồng. Ứng dụng của nó mở rộng sang thủy lực, máy nén và đóng tàu.

    General service liquid filled pressure gauge P254 series


    Nominal diameter 50, 63, 75 and 100 mm
    Accuracy ±1.5 % of full scale
    Scale range (MPa, kPa, bar) -0.1 ~ 0 to 0 ~ 40 MPa
    Working pressure Steady : 75 % of full scale
    Over range protection : 130 % of full scale
    Working temperature Ambient : -20 ~ 60 ℃
    -20 ~ 60 ℃ (With glycerin filling)
    -40 ~ 65 ℃ (With silicone filling)
    Fluid : Max. 60 ℃
    Fluid Glycerin
    Degree of protection EN60529/IEC529/IP67
    Temperature effect Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
    ±0.4 % per 10 ℃ of full scale



    Pressure connection Brass (50 and 63 mm)
    Nickel plated brass (75 and100 mm)
    Element Brass
    <6 MPa : C type bourdon tube
    ≥6 MPa : Helical type bourdon tube
    Case Stainless steel (304SS)
    Cover Stainless steel (304SS) Crimp ring type
    Window Polycarbonate (50 and 63 mm)
    Safety glass (75 and100 mm)
    Movement Brass
    Dial White aluminium with black graduations
    Pointer Black painted aluminium alloy
    Process connection 50 and 63 mm : ⅛", ¼" PT, NPT and PF
    75 mm : ¼", ⅜" PT, NPT and PF
    100 mm : ¼", ⅜", ½" PT, NPT and PF
    One piece type connection (50 and 63 mm)
    Two piece type connection (75 and 100 mm)

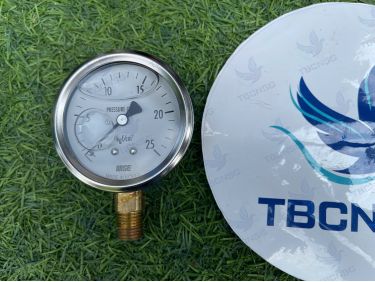

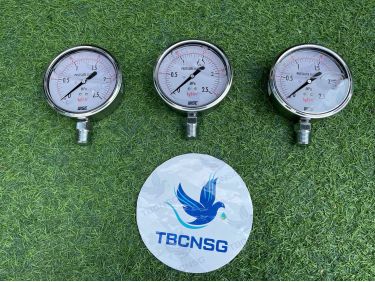

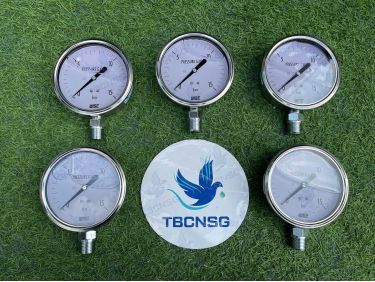

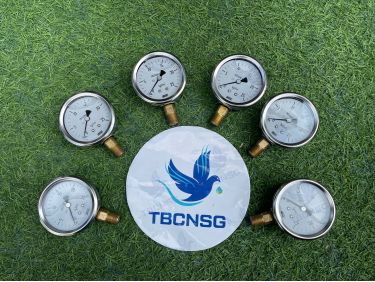

    Hình ảnh sản phẩm

    product image
