    Thông tin sản phẩm Van giảm áp Venn RD-7 dùng cho nước

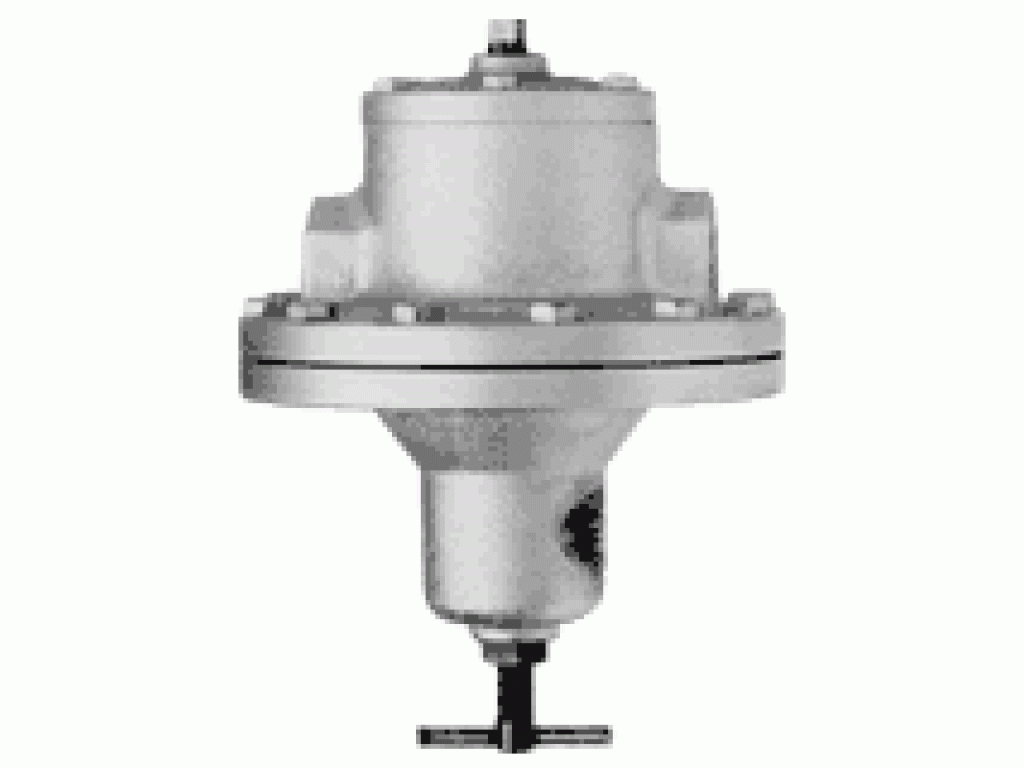

    Van giảm áp Venn RD-7 dùng cho nước (RD-7 Direct operating type Pressure Reducing Valve)

    Model RD-7
    Size 10 & 15
    Applicable fluid Fuel oils
    Applicable
    temperature
    5 - 120 Deg.C
    Applicable
    primary pressure
    Max. 1.0MPa
    Adjustable
    secondary pressure
    0.01 - 0.08, 0.08 - 0.2, 0.2 - 0.3MPa
    Maximum
    reducing rate
    20 : 1
    Minimum pressure
    differential across
    the disc
    0.05MPa
    Fluid viscosity 700cSt or less
    Materials Body : Cast iron, ( interior : Epoxy resin )
    Trim : Cast bronze
    Diaphragm and Disc : Synthetic rubber
    End connection Screwed JIS Rc
    Download Catalog
