inch mm |
1/2 DN 15 |
3/4 DN 20 |
1 DN 25 |
1.1/4 DN 32 |
1.1/2 DN 40 |
2 DN 50 |
2.1/2 DN 65 |
3 DN 80 |
4 DN100 |

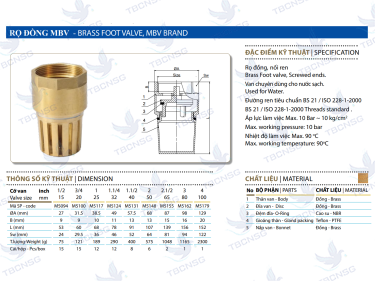

Mã SP - Code | M5094 | M5100 | M5117 | M5124 | M5131 | M5148 | M5155 | M5162 | M5179 |
ØA (mm) | 53 | 59 | 68 | 78 | 93 | 107 | 139 | 156 | 205 |
B (mm) | 9 | 9 | 10 | 11 | 13 | 13 | 15 | 16 | 20 |
L (mm) | 27 | 31.5 | 39 | 49 | 57.5 | 67.5 | 87 | 98 | 129 |
SW (mm) | 24 | 29.5 | 36 | 46 | 52 | 63 | 81 | 94 | 122 |
Trọng lượng (g) | 75 | 121 | 158 | 290 | 400 | 575 | 1048 | 1165 | 2300 |
