Sun Yeh OM-4, điều khiển khiển điện Sun Yeh OM-4 Taiwan

    Thông tin sản phẩm

    Sun Yeh OM-4, điều khiển khiển điện Sun Yeh OM-4

    Power:80W
    Max Torque:400 N.m/3542 lb.in
    Speed:16 Sec/90°
    Weight:20 kg/44.09 lb
    Manual Override:Hand-Wheel
    Mounting Flange(ISO 5211):F10

    SunYeh OM4

    Enclosure :
    ● IP67、NEMA 4X : Water-proof and dust-proof enclosure.
    ● Material : Dry powder coating aluminum alloy.

    Motor :
    ● F (Standard) or H (Optional) insulation class for all models.
    ● Built-in thermal protection prevents motor burning out.
    AC motor:125±5℃/257±9℉
    DC motor:90±5℃/194±9℉

    Duty Cycle :
    ● OM-4:30% duty cycle (Standard Model)
    ● OM-4:75% duty cycle (Optional)

    Working Conditions :
    ● Ambient temperature:-30℃ ~ +65℃ / -22℉ ~ +149℉
    ● The humidity:30% ~ 95%

    Position Indicator :
    ● All models have continuous mechanism position indicator on the top of actuator cover.

    Manual Override :
    ● Non-clutch design, the manual operation can be operated without any lever, clutch or brake upon power outage.
    ● When electric motor is operating, hand-wheel won’t rotate for personal safety purpose.

    Gear Train :
    ● High alloy steel gear trains provide self-locking function to avoid valve back drive.
    ● Gear trains have been already lubricated sufficiently with anti-high temperature lubricant at the factory.

    Conduit entrance:
    ● Standard : 1/2" PS
    ● Optional : 3/4" PF, 1/2" NPT, M20

    Various voltage:
    ● AC/DC 12V
    ● AC/DC 24V
    ● AC 110/220V,1-Phase

    ● AC 220/380/440V,3-Phase

    Enclosure:
    ● Nylon coating
    ● E.D. coating
    ● Epoxy coating

    Motor insulation class:
    ● Standard: F class
    ● Optional: H class

    Water-proof rating:
    ● IP 68

    Working angle:
    ● Standard:0~90°
    ● Optional:91~270°

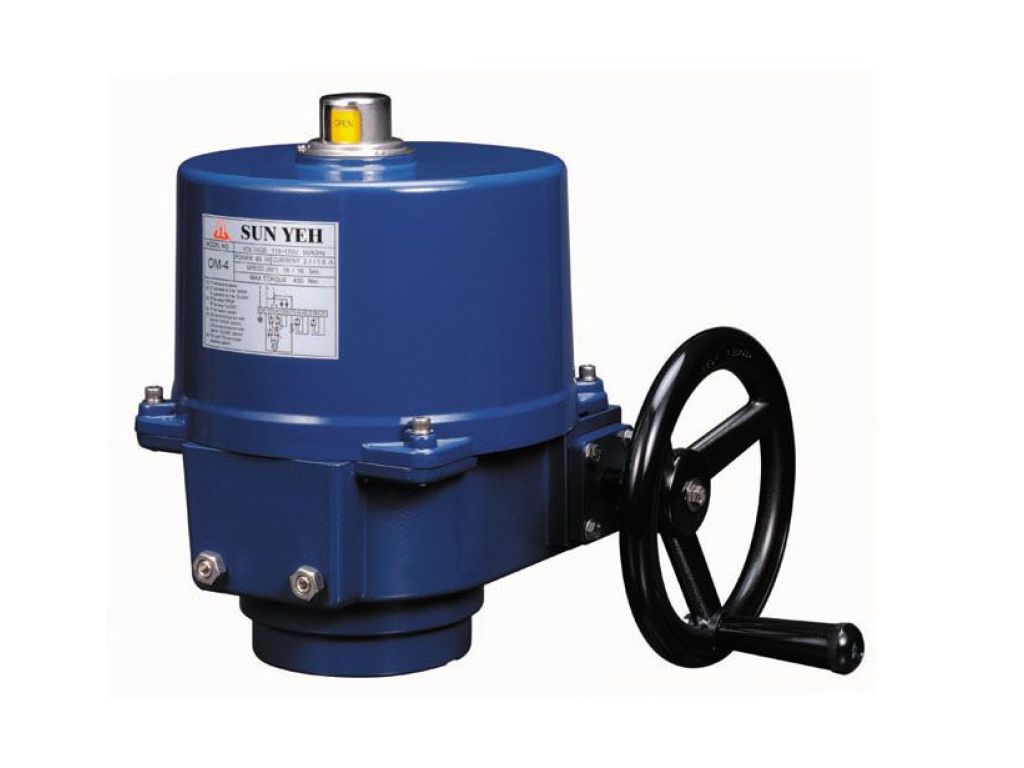

    Hình ảnh sản phẩm

    product image
